MIRANDA / CRANKS & CRANKSETS

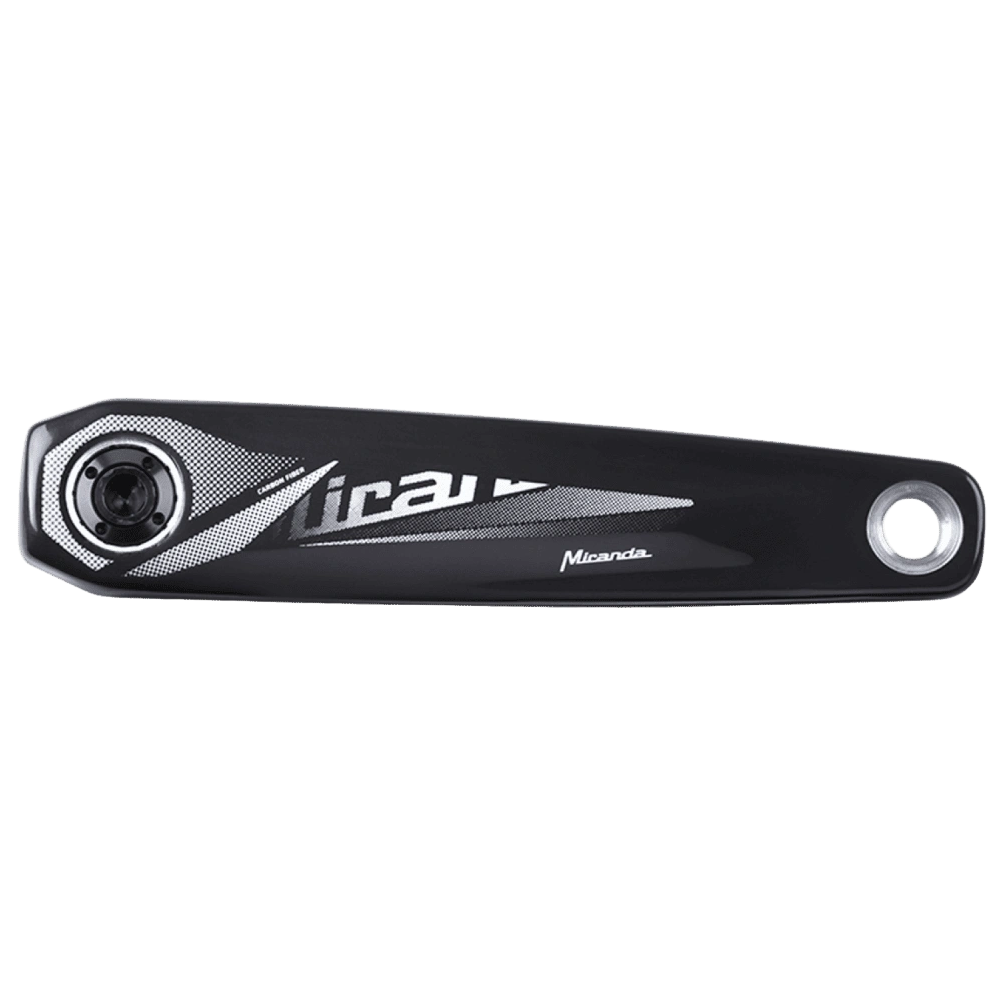

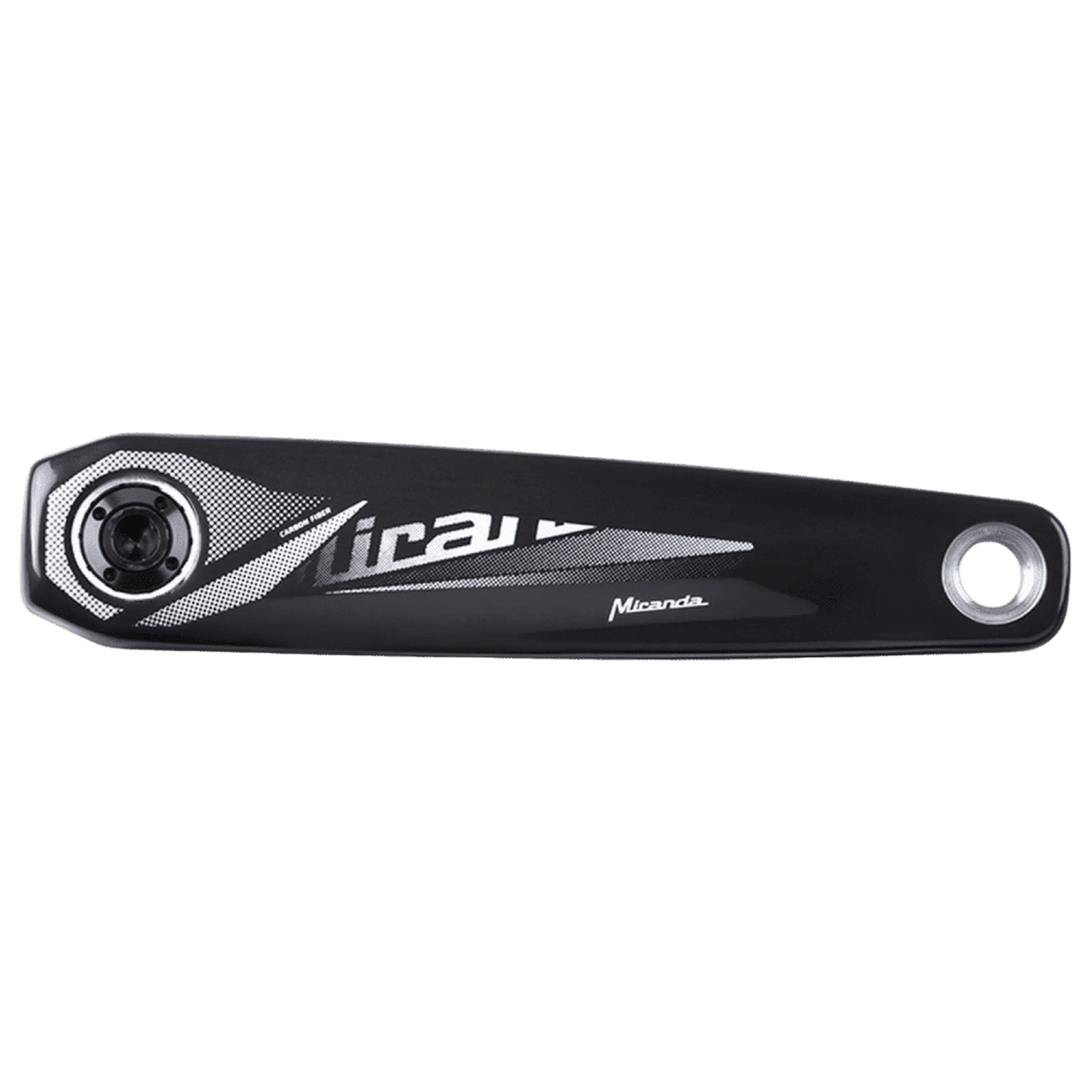

A carbon fibre crank pair for an ISIS e-bike assembly, in the 165 mm / Q:8 configuration. The 141 g reference weight is measured per arm without its bolt, giving you a clear basis for comparing the component rather than the complete drivetrain.
At a glance
- Carbon fibre crank construction
- Match length and geometry to your existing assembly
Technical details
| Material | Carbon fibre |
|---|---|
| Interface / application | ISIS |
| Crank lengths (mm) | 165 |
| Crank geometry options | Q:8 |
| Supplied as | Left and right crank arms, with installation screws |
| Reference product weight | 141 g per arm, ISIS 165 / Q:8, without bolt |
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Technical drawings and installation guides
Videos and technical guides
Specifications
EAN
5603895419459
Crank length (mm)
165
Crank geometry
Q:8
interface
ISIS
Material
Carbon Fiber
segment
E-bike
