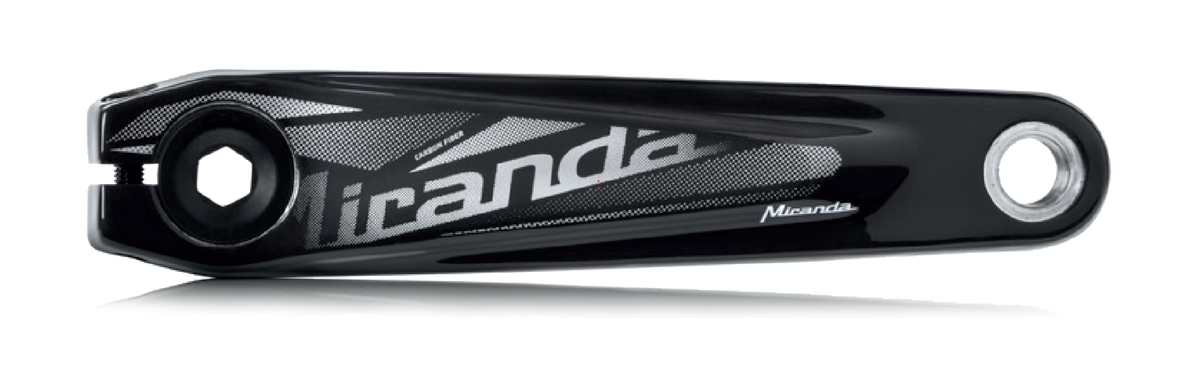

Carbon Fiber LS Cranks SH

Regular price €260,00 EUR
Sale price €260,00 EUR Regular price
Shipping calculated at checkout.
In stock
Size
Q-factor
Which Q-profile do I need?

Some bikes need different left and right crank profiles. Match the complete codes on both existing cranks, including any prefixes or suffixes.

See the illustrated Q-factor guide
Carbon Fiber LS Shimano Crank Arms. Carbon fibre construction. Choose crank length and Q-profile for your Shimano E6100 / E7000 / E8000 setup.
View full details

MIRANDA / CRANKS & CRANKSETS

Carbon fibre construction gives these Miranda crank arms a different character from an aluminium replacement. Choose the correct interface and crank geometry for your bike, with the pair matched to the required arm length.

At a glance

  • Carbon fibre crank construction
  • Match length and geometry to your existing assembly

Technical details

Product specifications
Material Carbon fibre
Interface / application Shimano E6100 / E7000 / E8000
Crank lengths (mm) 160, 170
Crank geometry options Q:16
Supplied as Left and right crank arms, with installation screws

Choose the right setup

Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.

Compare configurations and product codes
Configuration Product code
160 / Q:16 PC18SHC020C100002041
170 / Q:16 PC19SHC020C100002041

Technical drawings and installation guides

Specifications

Crank length (mm)
160
Crank geometry
Q:16
