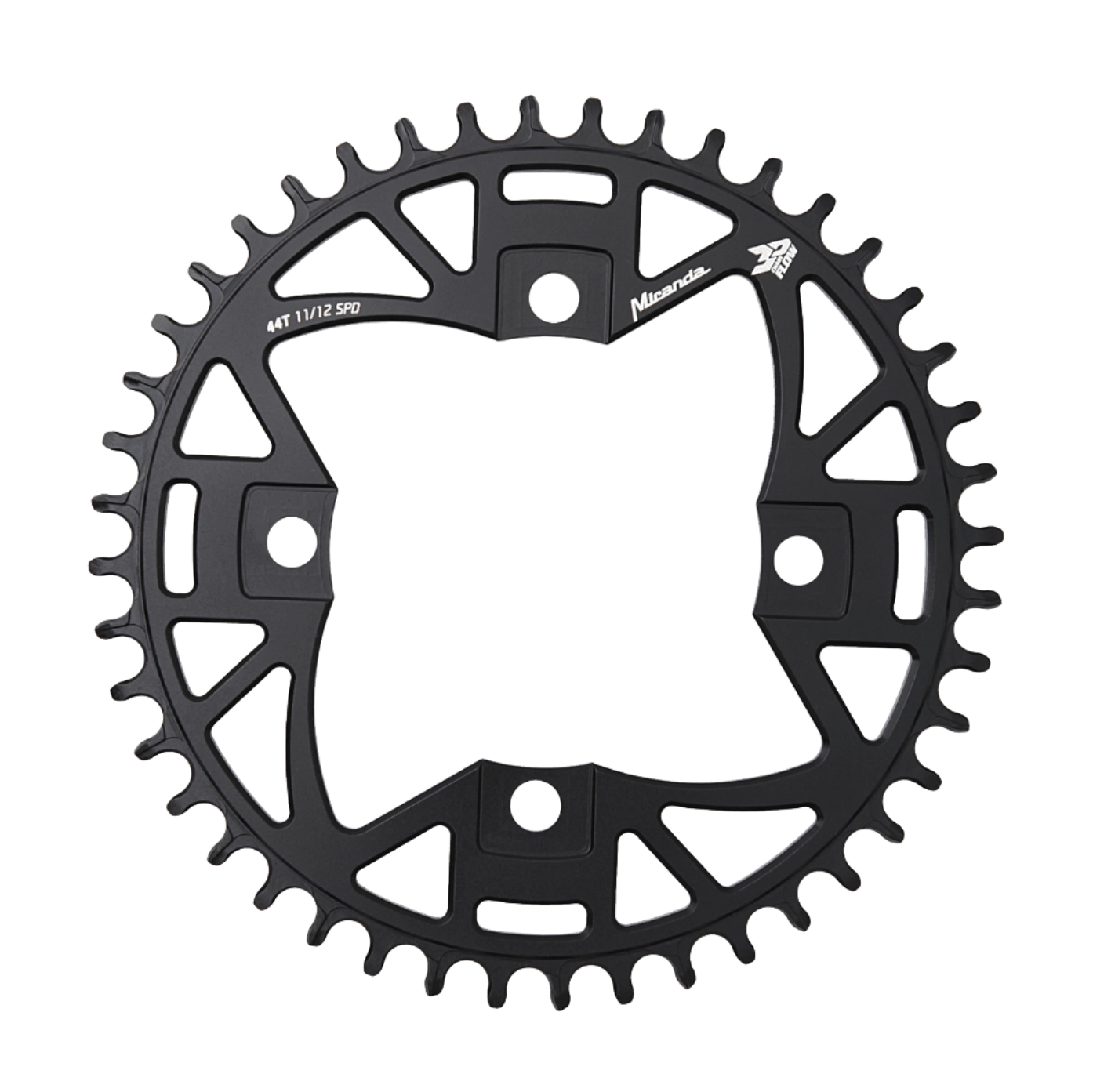

MIRANDA / CHAINRINGS
Miranda Chainflow 3D uses a dedicated T-shaped tooth profile to guide the chain in a single-chainring drivetrain. Choose the tooth count and mounting for your gearing, then match the profile to the recommended chain systems.
At a glance
- Chainflow 3D tooth profile
- Choose gearing by tooth count
- Match chain compatibility before installation
Technical details
| Tooth profile | Chainflow 3D |
|---|---|
| Recommended chain systems | 9-, 10- and 11-speed chains, plus SRAM Eagle non T-Type chains |
| Not recommended | SRAM 12-speed Eagle T-Type and Road systems; Shimano 12-speed Hyperglide+; KMC DLC / X12; 13-speed chains |
| Material options | Aluminium, Steel |
| Chainring mounting | BCD 104 mm |
| Tooth counts (T) | 32, 34, 36, 38, 40, 42, 44, 46 |
Choose the right setup
Match the mounting interface or BCD, tooth count, chain specification and chainline. Direct-mount interfaces and different motor generations are not interchangeable just because they use the same tooth count.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 32 / Aluminium | R32D1333A22L31000042 |
| 34 / Aluminium | R34D1333A22L32000042 |
| 34 / Steel | R34D133FL02L32000041 |
| 36 / Aluminium | R36D1333A22L33000042 |
| 36 / Steel | R36D133FL02L33000042 |
| 38 / Aluminium | R38D1333A22L34000042 |
| 38 / Steel | R38D133FL02L34000048 |
| 40 / Aluminium | R40D1333A22L35000042 |
| 42 / Aluminium | R42D1333A22L36000042 |
| 44 / Aluminium | R44E1333A22L37000042 |
| 46 / Steel | R46E133FL02L88000048 |
Videos and technical guides
Specifications
EAN
5603895312460
Chainring teeth (T)
32
Material
Aluminium
Product reviews

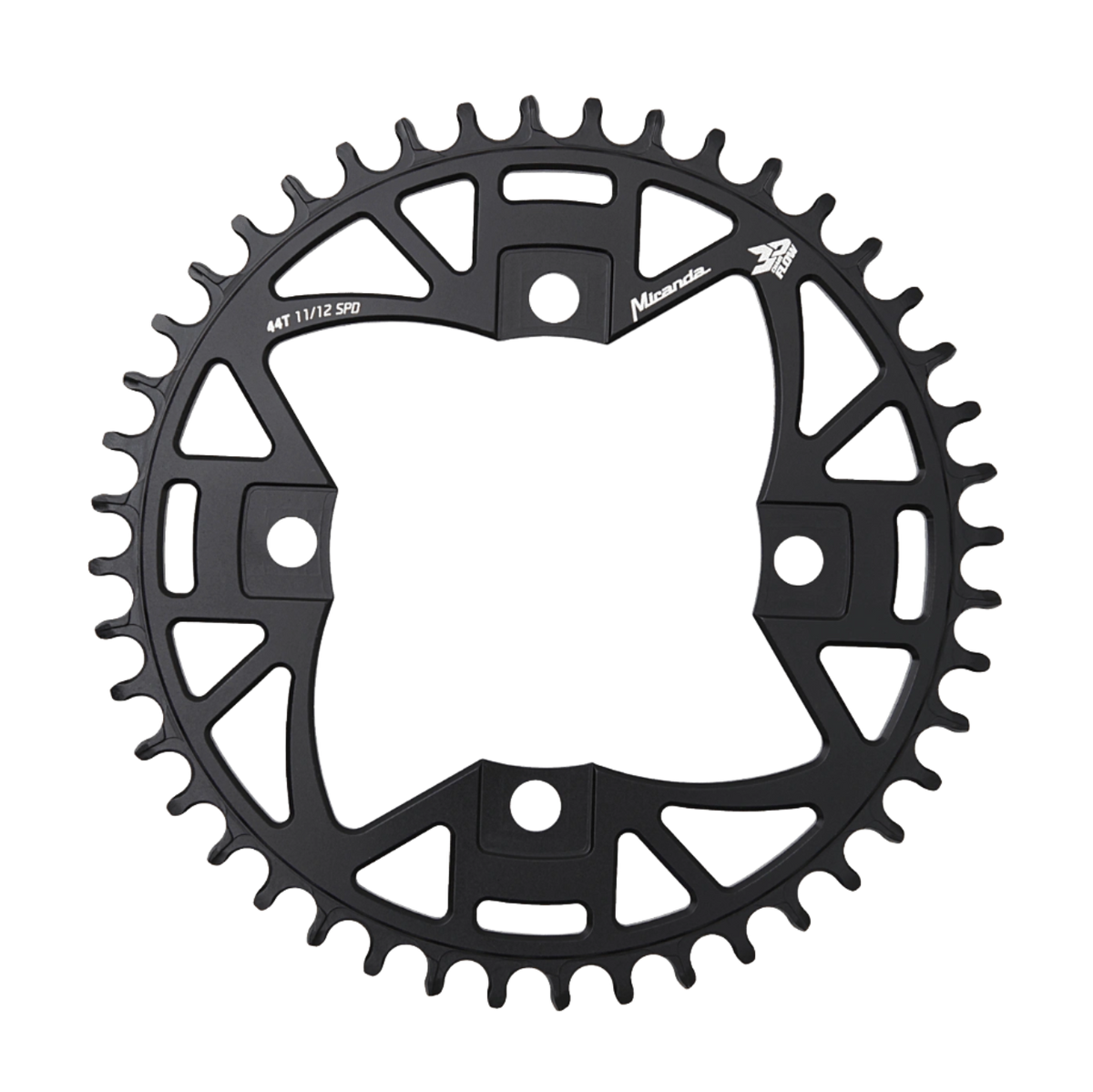

Options & availabilityChainring Chainflow 3D BCD 104
