MIRANDA / CHAINRINGS
The SE12 profile brings Miranda Chainflow 3D chain-guiding design to the specified 12-speed chain systems. Choose the tooth count, material and mounting for your drivetrain, with chain compatibility checked against the SE12 specification.
At a glance
- Chainflow 3D SE12 tooth profile
- Choose gearing by tooth count
- Match chain compatibility before installation
Technical details
| Tooth profile | Chainflow 3D SE12 |
|---|---|
| Recommended chain systems | SRAM 12-speed Eagle T-Type and Road systems; Shimano 12-speed Hyperglide+; KMC DLC and X12 |
| Not recommended | 13-speed chains |
| Material options | Steel, Aluminium |
| Chainring mounting | BCD 104 mm |
| Tooth counts (T) | 32, 34, 36, 38, 40, 42, 44, 46, 50 |
Choose the right setup
Match the mounting interface or BCD, tooth count, chain specification and chainline. Direct-mount interfaces and different motor generations are not interchangeable just because they use the same tooth count.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 32 / Steel | RSE2133FL02L4G000048 |
| 34 / Steel | RSE3133FL02L5G000048 |
| 36 / Steel | RSE4133FL02L6G000048 |
| 38 / Steel | RSE5133FL02L4F000048 |
| 38 / Aluminium | RSE51333A22L4F000048 |
| 40 / Steel | RSE6133FL02L7G000048 |
| 40 / Aluminium | RSE61333A22L7G000048 |
| 42 / Steel | RSE7133FL02L1H000048 |
| 42 / Aluminium | RSE71333A22L1H000048 |
| 44 / Steel | RSE8133FL02L8G000048 |
| 44 / Aluminium | RSE81333A22L8G000048 |
| 46 / Steel | RSE9133FL02L5F000048 |
| 50 / Aluminium | R50F1333A22L3H000048 |
Specifications
Chainring teeth (T)
32
Material
Steel
Product reviews

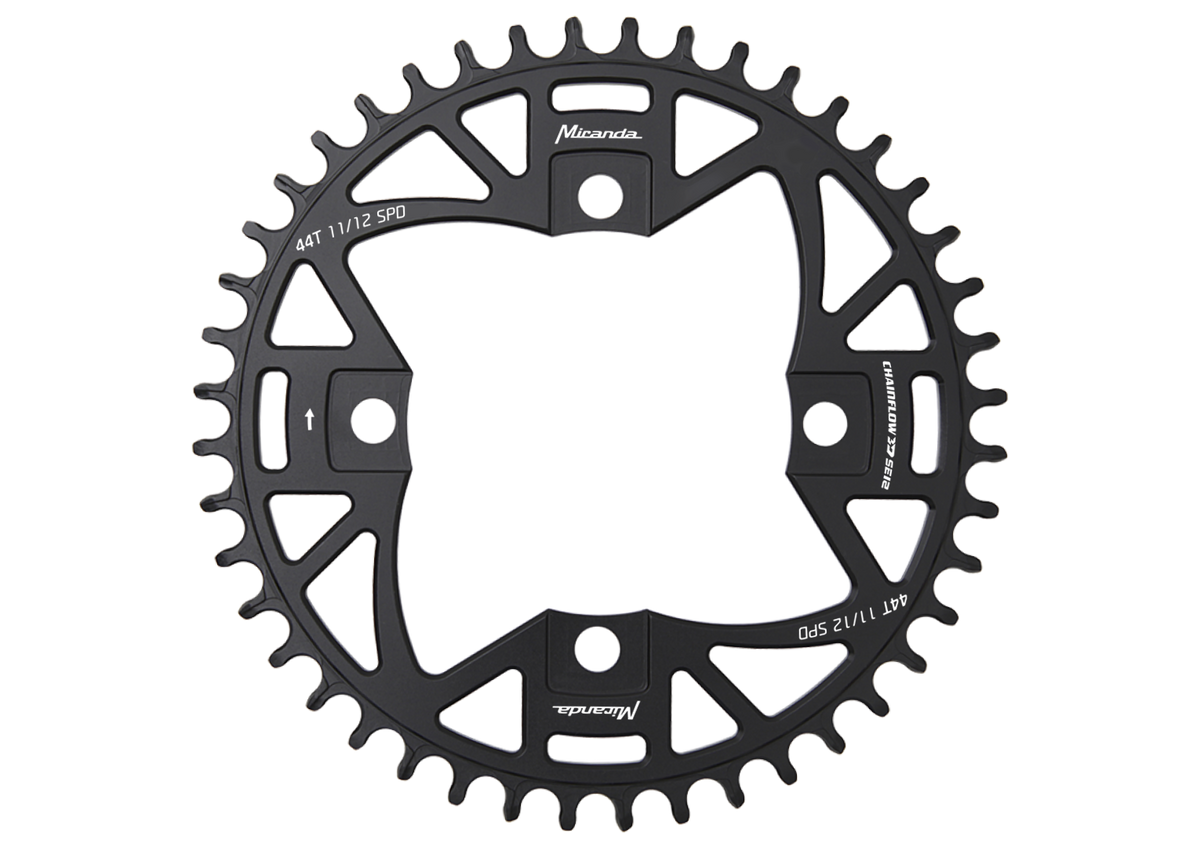

Options & availabilityChainring Chainflow 3D SE12 BCD 104
