MIRANDA / CRANKS & CRANKSETS

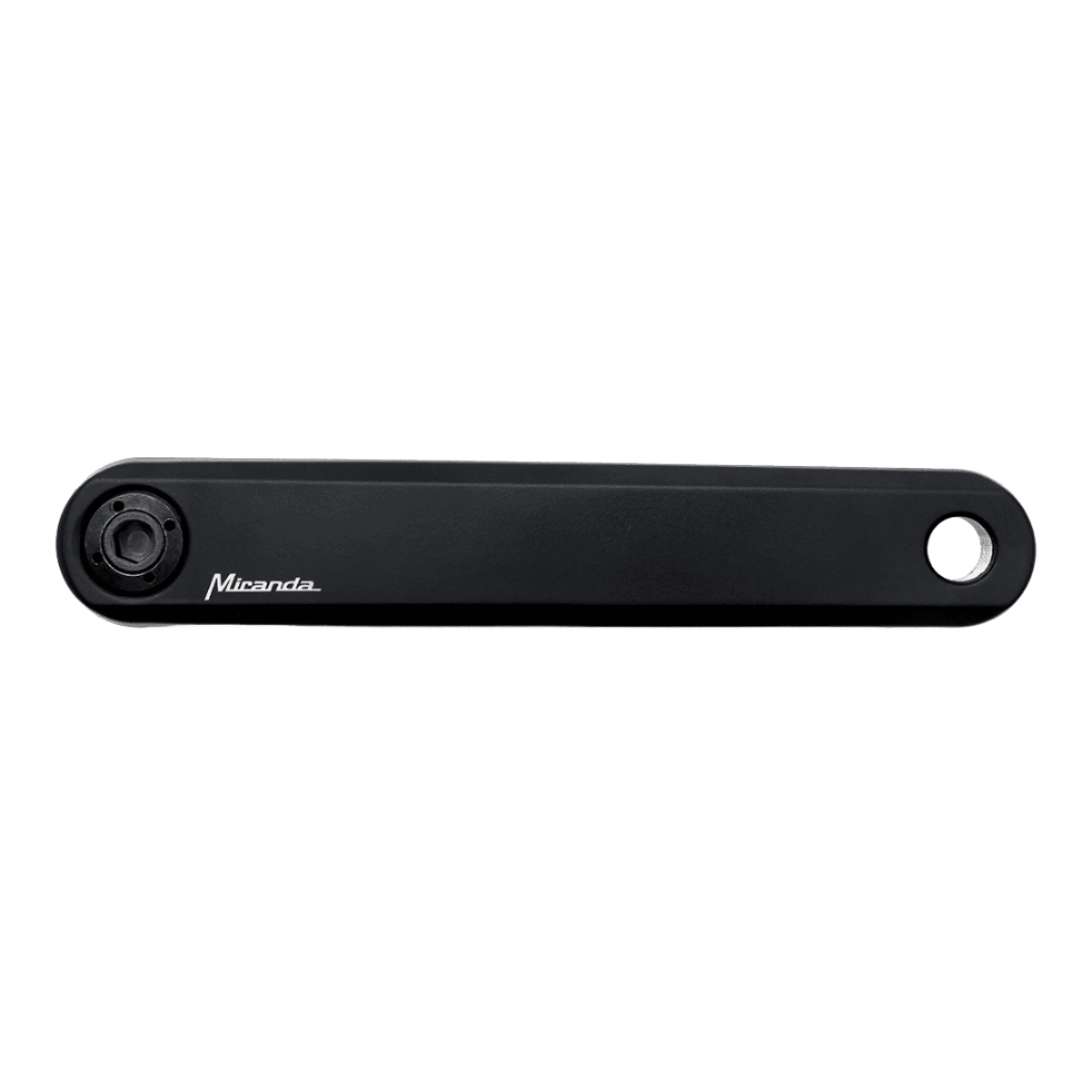

A restrained shape and a clean finish give the Classic its understated character. Made in Portugal from cold-forged aluminium, it brings Miranda engineering to a drivetrain where fit and a timeless appearance both matter.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | ISIS |
| Crank lengths (mm) | 170, 172.5, 175 |
| Crank geometry options | Q:12 |
| Supplied as | Left and right crank arms, with installation screws |
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 170 / Q:12 | PDB7IBT17CA70000S141 |
| 172.5 / Q:12 | PDH6IBT17CA70000S141 |
| 175 / Q:12 | PDD4IBT17CA70000S141 |
Technical drawings and installation guides
Videos and technical guides
Specifications
EAN
5603895440705
Crank length (mm)
170
Crank geometry
Q:12
interface
ISIS
Material
Aluminium
segment
E-bike, City & Trekking
