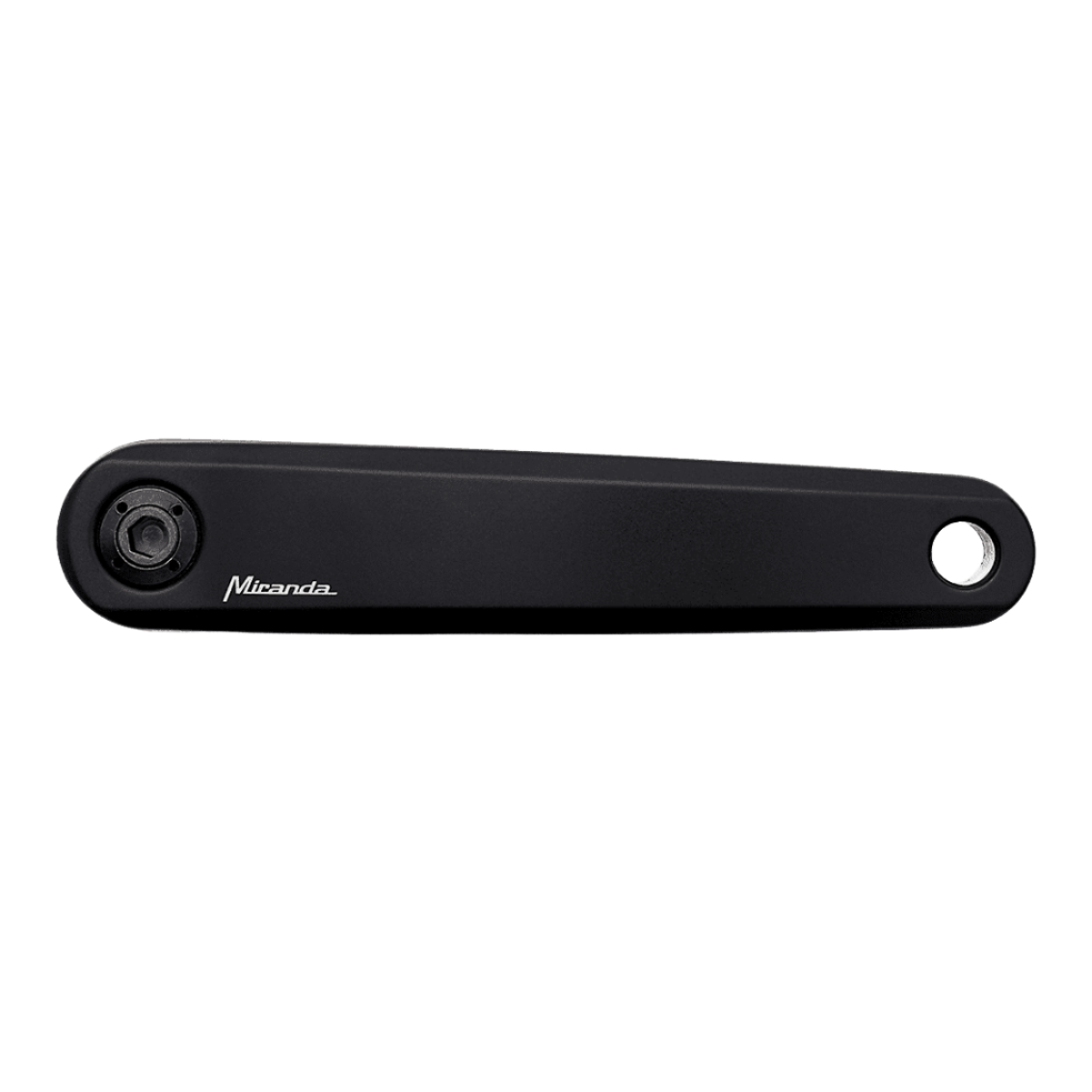

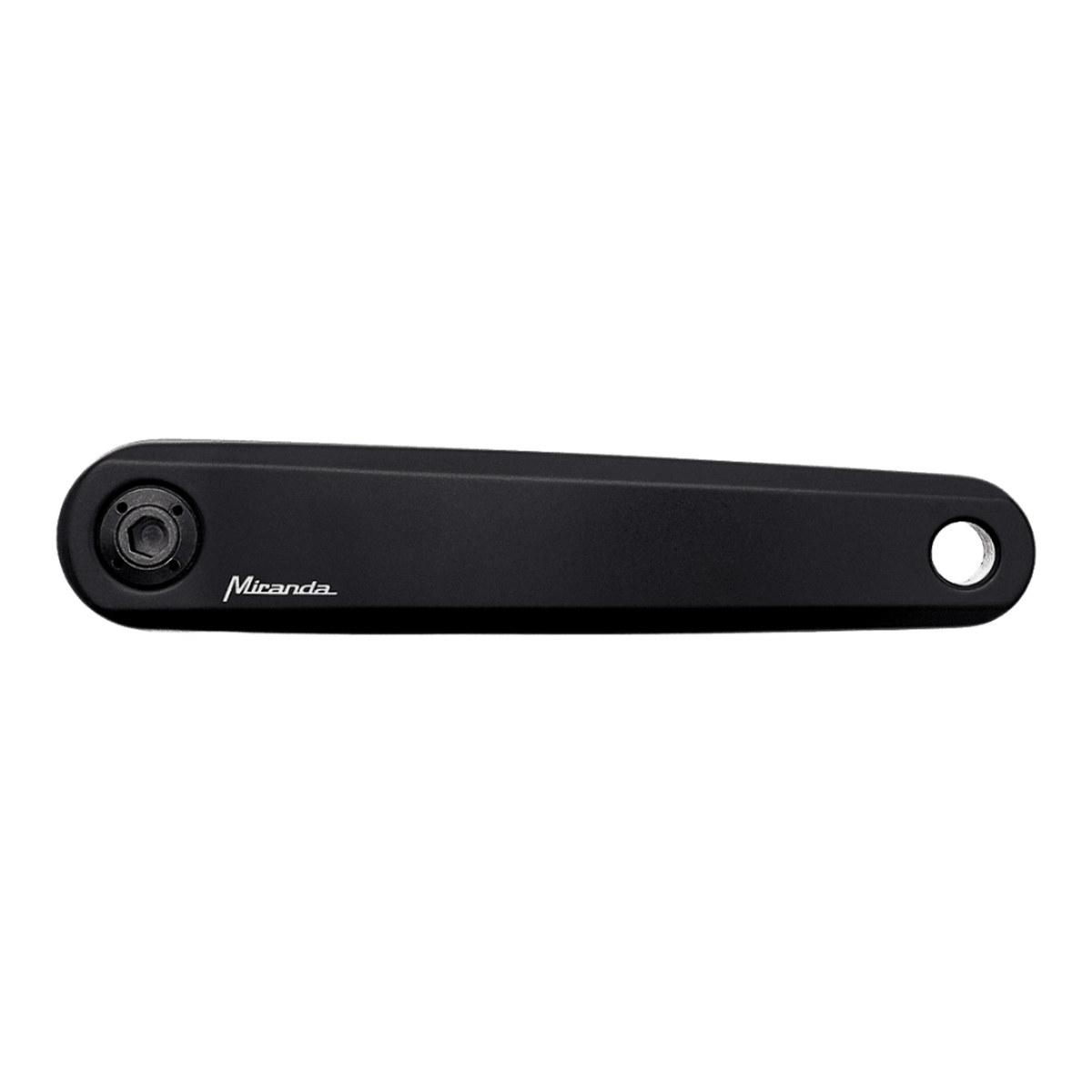

MIRANDA / CRANKS & CRANKSETS
The adaptable Delta crank platform brings a clean, purposeful finish to your drivetrain. Choose the interface, length and crank geometry that match your bike, with cold-forged aluminium construction made in Portugal.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | BNI / Mini-ISIS for Bosch Gen 3 |
| Crank lengths (mm) | 150, 152, 160, 165, 170, 175 |
| Crank geometry options | Q:16, Q:8 |
| Supplied as | Left and right crank arms, with installation screws |
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 150 / Q:16 | PDC7MIT17CA70000S041 |
| 152 / Q:16 | PD01MIT17CA70000S041 |
| 160 / Q:16 | PD17MIT17CA70000S041 |
| 165 / Q:16 | PDE1MIT17CA70000S041 |
| 170 / Q:16 | PD89MIT17CA70000S041 |
| 175 / Q:8 | PD05MIT17CA70000S041 |
| 175 / Q:16 | PD04MIT17CA70000S041 |
Technical drawings and installation guides
Videos and technical guides
Specifications
Crank length (mm)
150
Crank geometry
Q:16
interface
BNI
Material
Aluminium
motors
Bosch G3
Customer rating
Options & availabilityDelta Crank BNI
