MIRANDA / CRANKS & CRANKSETS

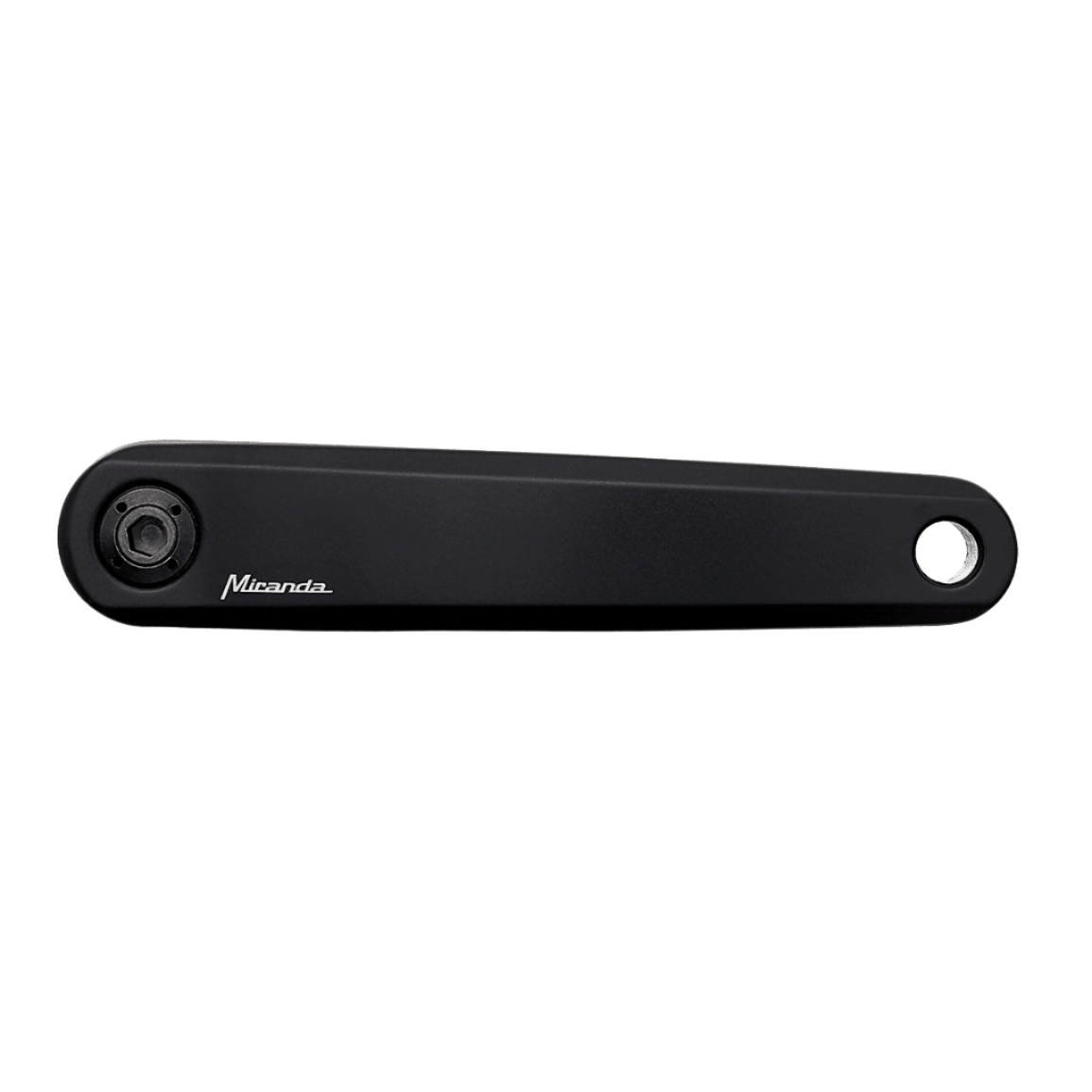

The adaptable Delta crank platform brings a clean, purposeful finish to your drivetrain. Choose the interface, length and crank geometry that match your bike, with cold-forged aluminium construction made in Portugal.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | ISIS |
| Crank lengths (mm) | 152, 155, 160, 165, 170, 175 |
| Crank geometry options | Q:16, 55Q:16/55Q:29.6, Q:0/Q:8, 55Q:16/Q:8, Q:29.5 UC, Q:0, Q:8 FB, Q:16/Q:8 FB, 55Q:16 O20, 55Q:16/Q:29.6, 55Q:21, 55Q:21 O20, Q:35/Q:0, Q:35/Q:8, 55Q:35, 55Q:35 O20, Q:38/Q8 FB, Q:38/Q:16, Q:8, Q:8/Q:16, 55Q:8 |
| Supplied as | Left and right crank arms, with installation screws |
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Technical drawings and installation guides
Videos and technical guides
Specifications
EAN
5603895393131
Crank length (mm)
170
Crank geometry
Q:29.5 UC
interface
ISIS
Material
Aluminium
segment
E-bike, City & Trekking
Customer rating

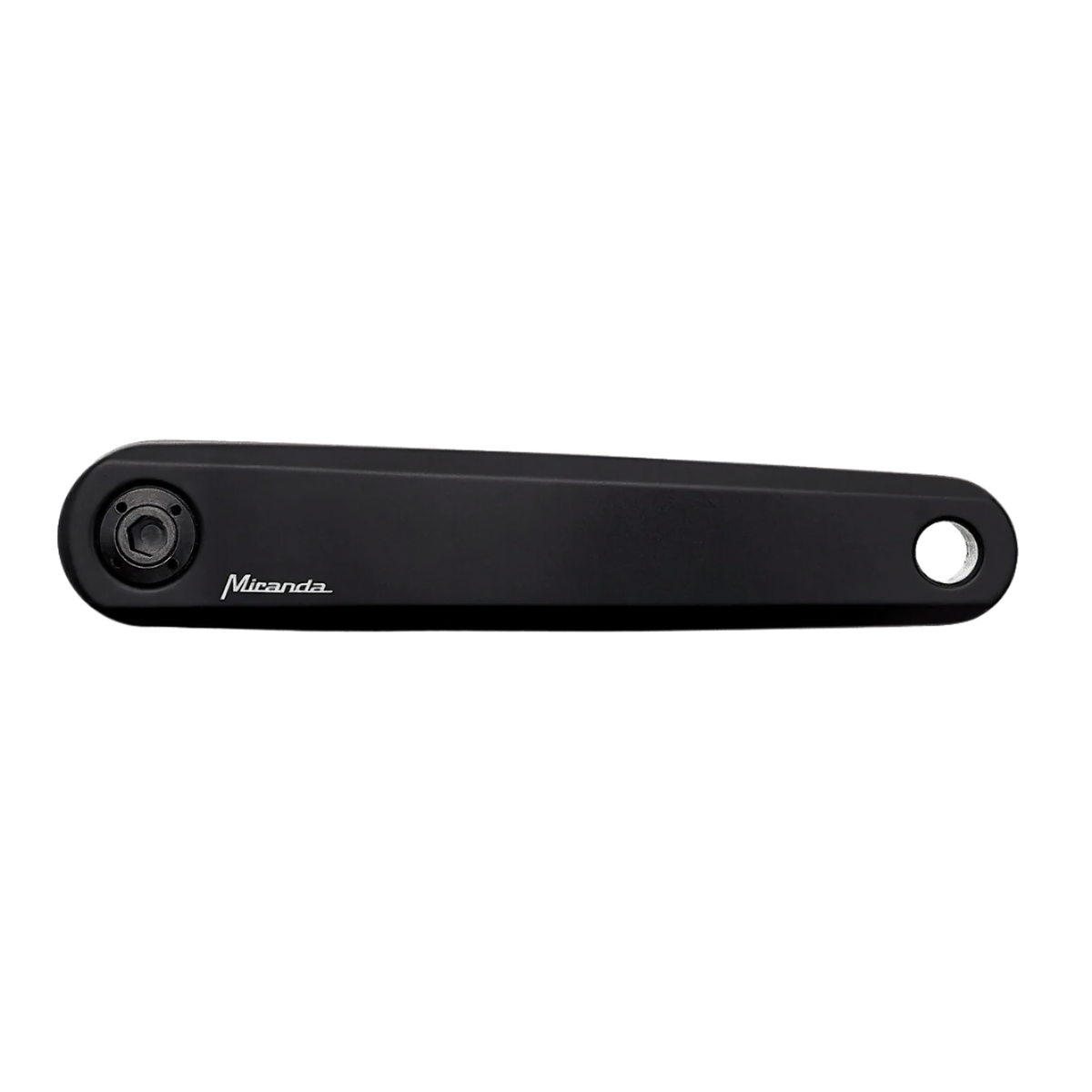

Options & availabilityDelta Cranks ISIS
