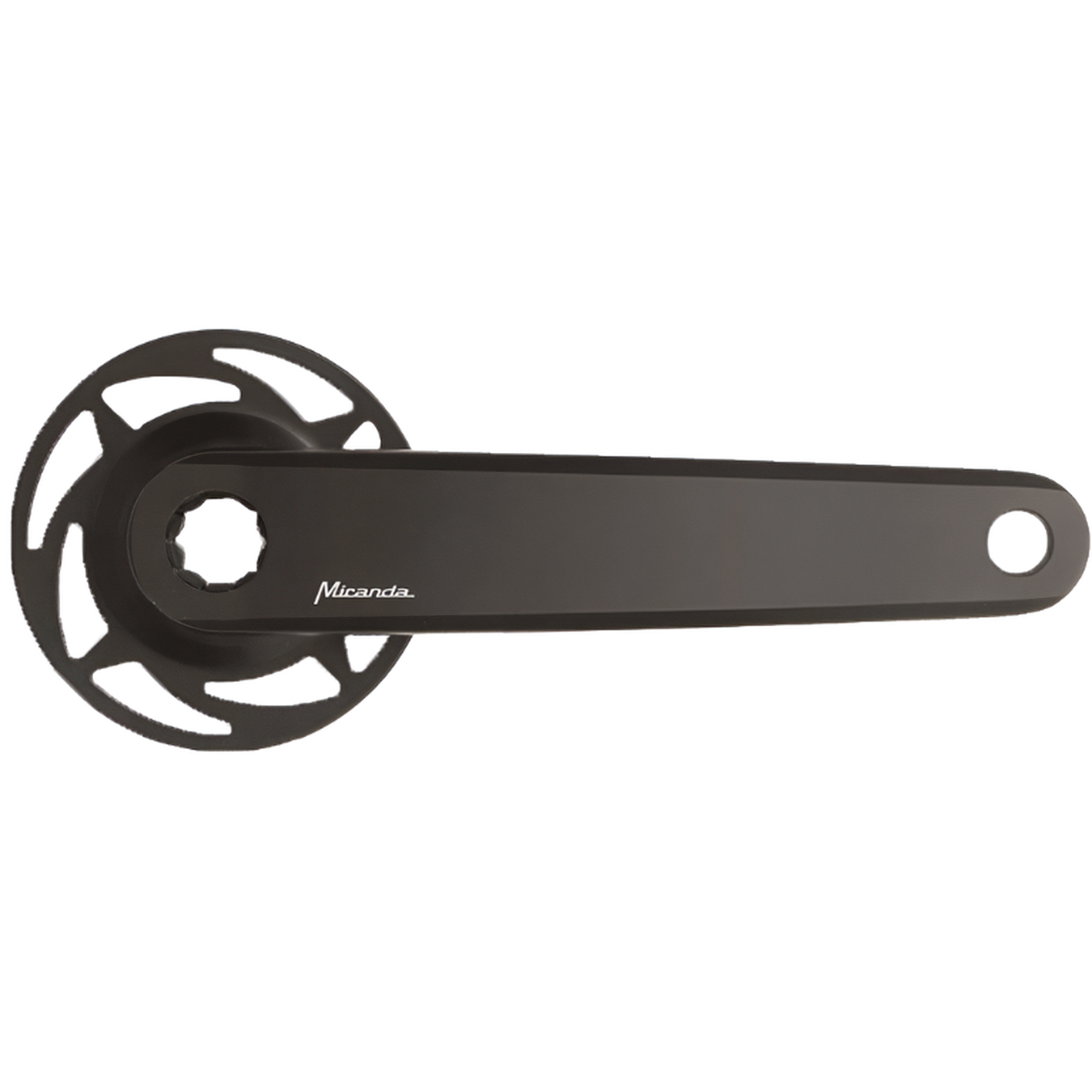

Delta Cranks W/ICG ISIS
Which Q-profile do I need?
Some bikes need different left and right crank profiles. Match the complete codes on both existing cranks, including any prefixes or suffixes.
See the illustrated Q-factor guide ↗Couldn't load pickup availability
MIRANDA / CRANKS & CRANKSETS
The adaptable Delta crank platform brings a clean, purposeful finish to your drivetrain. Choose the interface, length and crank geometry that match your bike, with cold-forged aluminium construction made in Portugal.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | ISIS |
| Crank lengths (mm) | 160, 170 |
| Crank geometry options | Q:16, Q:8 FB |
| Color | Standard (Black) |
| Supplied as | Left and right crank arms, with installation screws |
Integrated Chain Guard
This ICG version incorporates Miranda Integrated Chain Guard protection for the Bosch Gen 2 application. The guard is designed to shield the chain area from debris and external impacts. Match the guard and crank geometry to your existing assembly.
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 160 / Q:16 / Standard (Black) | PD17IB222CA7I001S141 |
| 170 / Q:16 / Standard (Black) | PD02IBT17CA7I001S141 |
| 170 / Q:8 FB / Standard (Black) | PDE2IBT17CA7I001S141 |
