MIRANDA / CRANKS & CRANKSETS

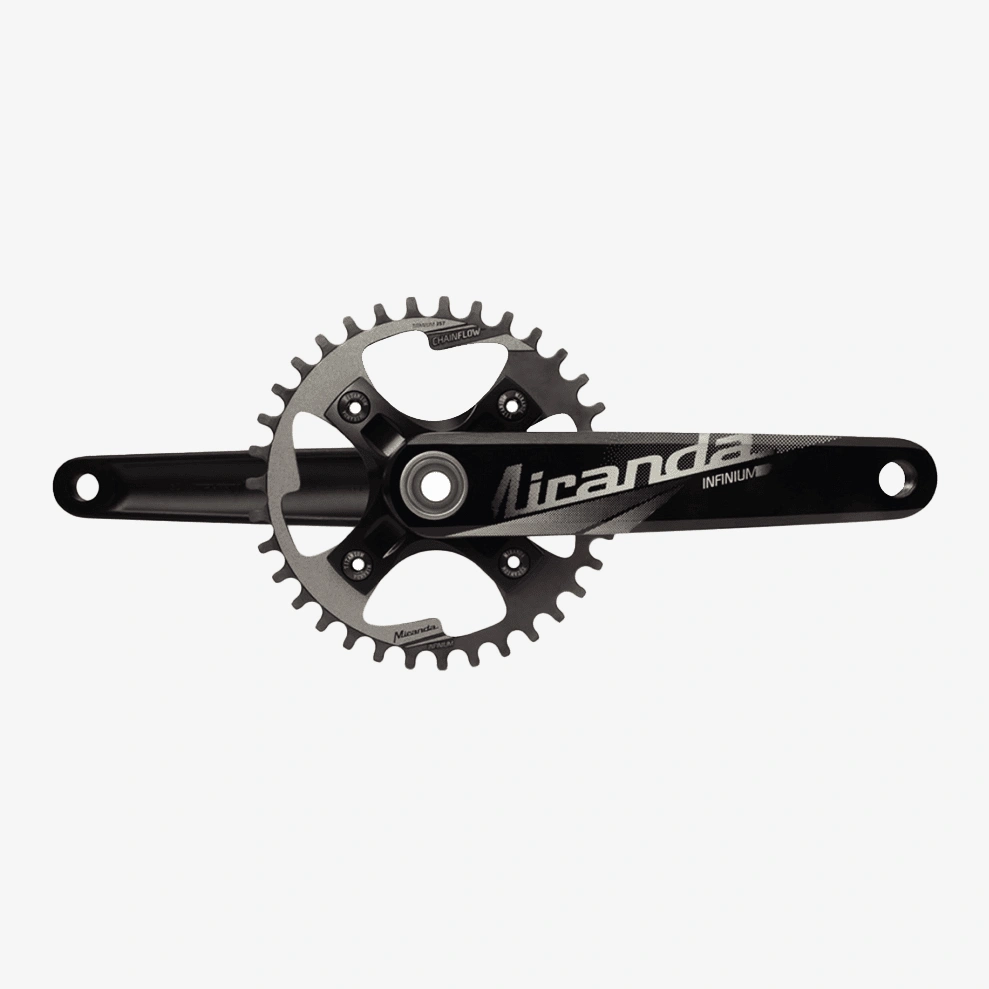

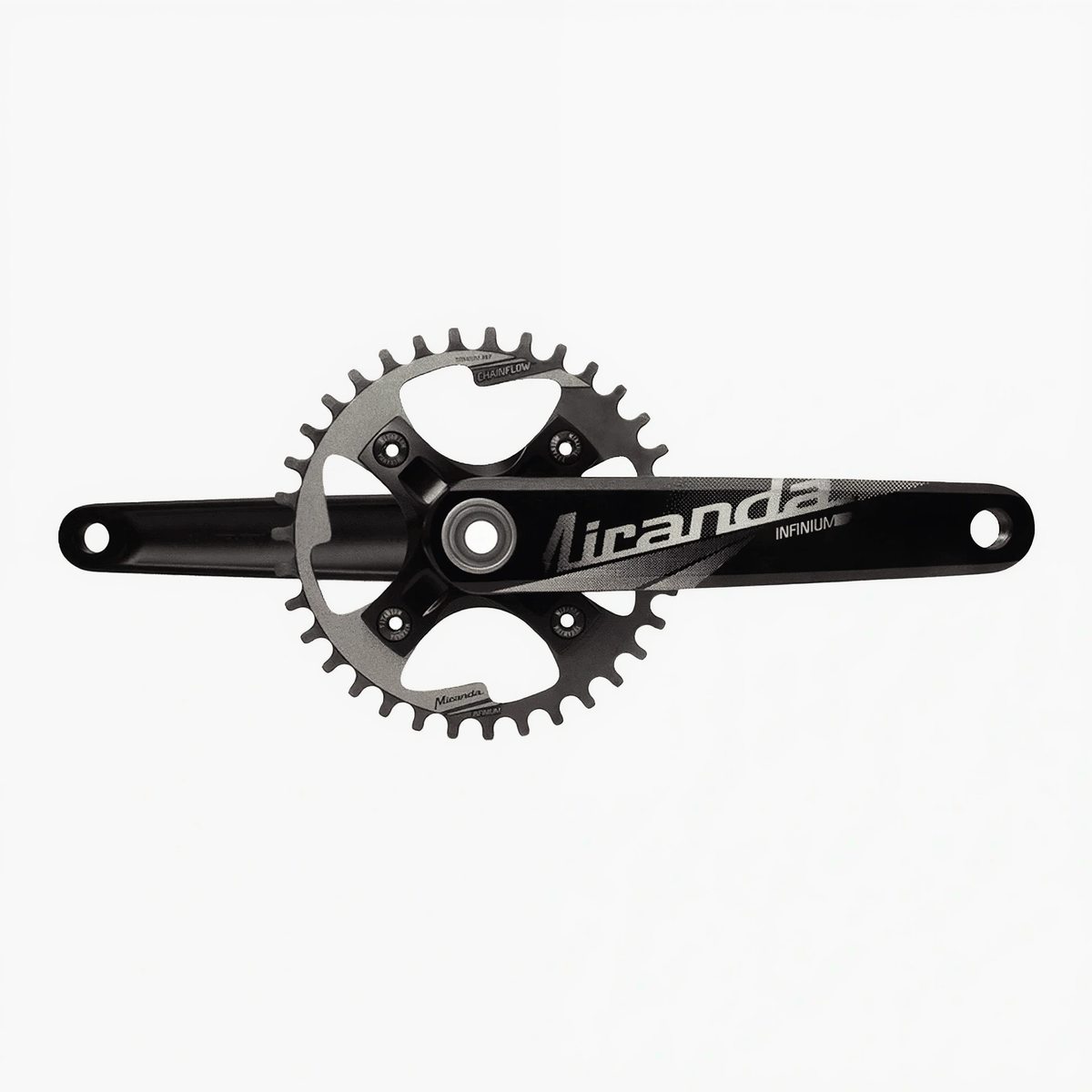

The Delta INFINIUM combines Miranda crank engineering with a titanium spindle, chainring, nuts and bolts. Its ChainFlow v1 tooth geometry is designed to guide the chain and distribute contact through the rollers, bringing the titanium components together in a distinctive MTB crankset.
At a glance
- Titanium spindle and drivetrain components
- ChainFlow v1 tooth geometry
- One-tooth chainring increments from 28T to 38T
Technical details
| Crank length | 170 mm |
|---|---|
| Crank geometry | Q:8 |
| Chainring mounting | BCD 88 mm |
| Spindle | Titanium alloy, 24/22 mm |
| Chainring, nuts and bolts | Titanium alloy |
| Chainring tooth counts (T) | 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38 |
| Assembly chainlines | 46 / 49 / 51 mm, depending on the assembly |
Choose the right setup
The size selector chooses chainring tooth count. Match the 24/22 mm spindle to the correct bottom bracket, then check chainline and frame clearance for the complete setup.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 28 | PD03HR222L1128TIS141 |
| 29 | PD03HR222L1129TIS141 |
| 30 | PD03HR222L1130TIS141 |
| 31 | PD03HR222L1131TIS141 |
| 32 | PD03HR222L1132TIS141 |
| 33 | PD03HR222L1133TIS141 |
| 34 | PD03HR222L1134TIS141 |
| 35 | PD03HR222L1135TIS141 |
| 36 | PD03HR222L1136TIS141 |
| 37 | PD03HR222L1137TIS141 |
| 38 | PD03HR222L1138TIS141 |
Technical drawings and installation guides
Videos and technical guides
Specifications
Chainring teeth (T)
28
BCD (mm)
88
Chainline (mm)
46/49/51
Crank length (mm)
170
Crank geometry
Q:8
segment
MTB
