MIRANDA / CRANKS & CRANKSETS
The Delta LS brings Miranda cold-forged aluminium construction to a drivetrain with its own interface and clearance requirements. Match the arm length and Q-profile to your bike, with a choice of finish in the Special Edition version.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
- Distinctive finish options for a more individual build
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | Shimano E6100 / E7000 / E8000 |
| Crank geometry options | Q:16 |
| Crank lengths (mm) | 160, 170 |
| Color | Diamond Red, Diamond Green, Diamond Blue, Diamond Purple, Diamond Grey, Polished Black Plus, Diamond Orange |
| Supplied as | Left and right crank arms, with installation screws |
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| Q:16 / 160 / Diamond Red | PD56SHD72L0R00002041 |
| Q:16 / 160 / Diamond Green | PD56SHD30L0R00002041 |
| Q:16 / 160 / Diamond Blue | PD56SHD10L0R00002041 |

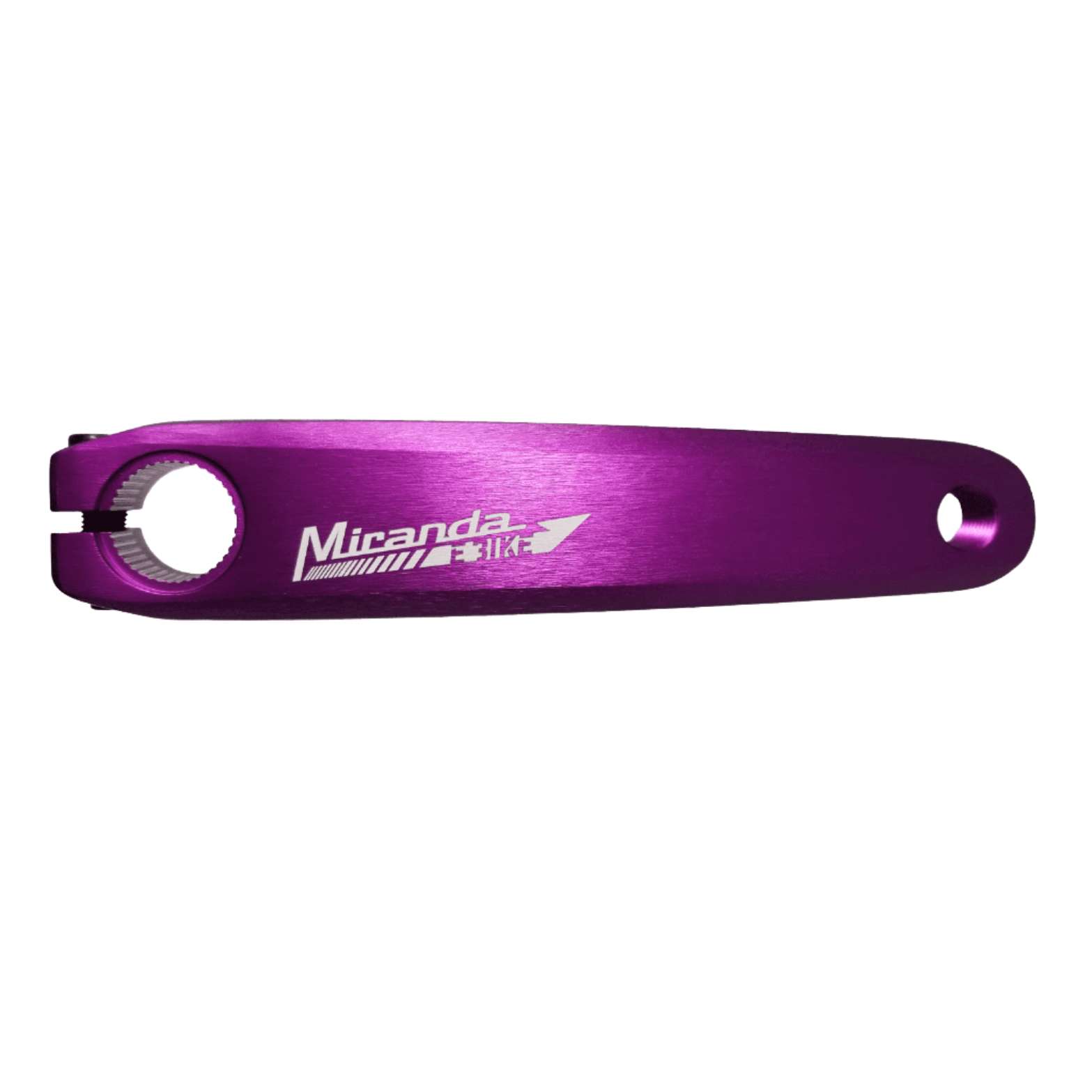

| Q:16 / 170 / Diamond Purple | PD24SHD40L0R00002041 |

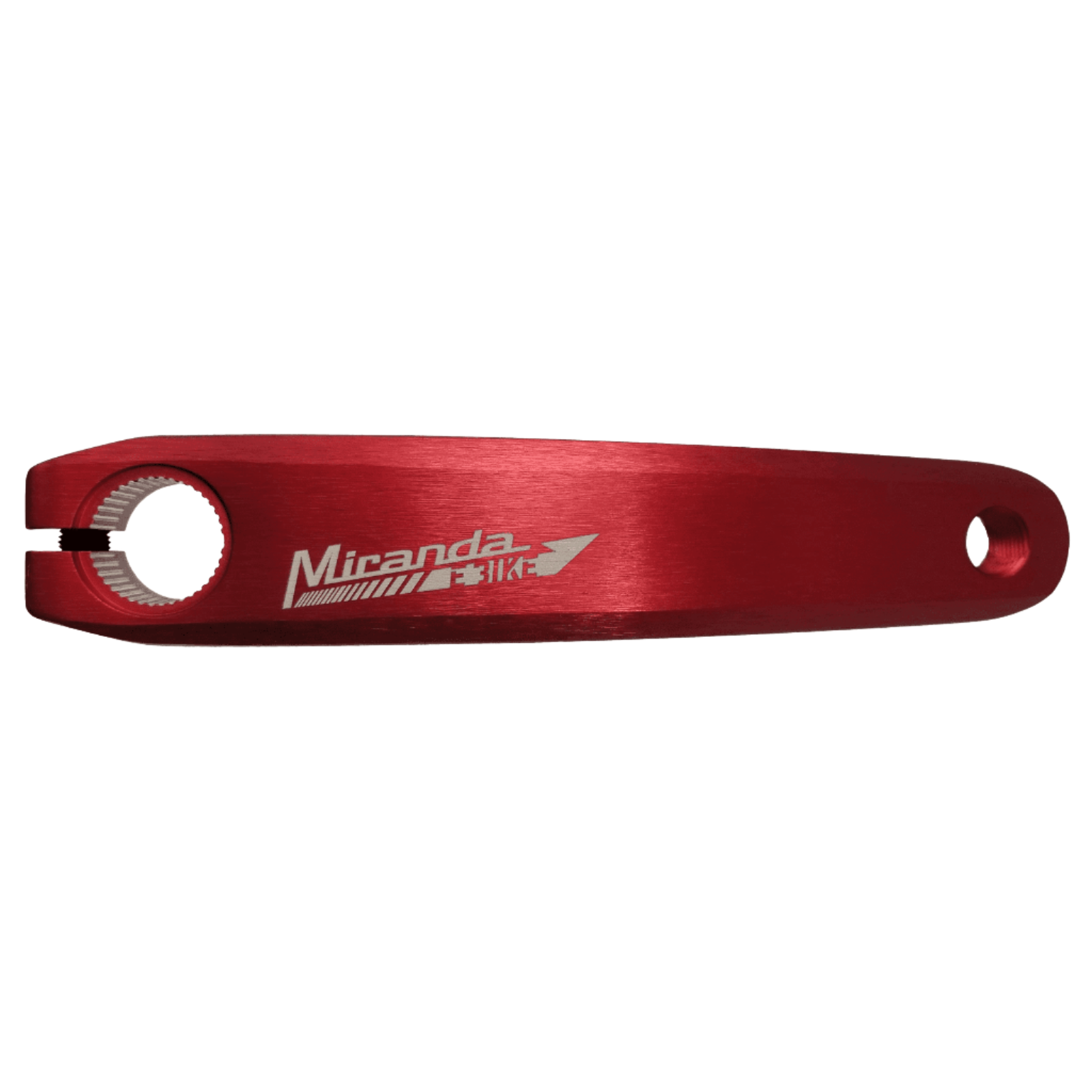

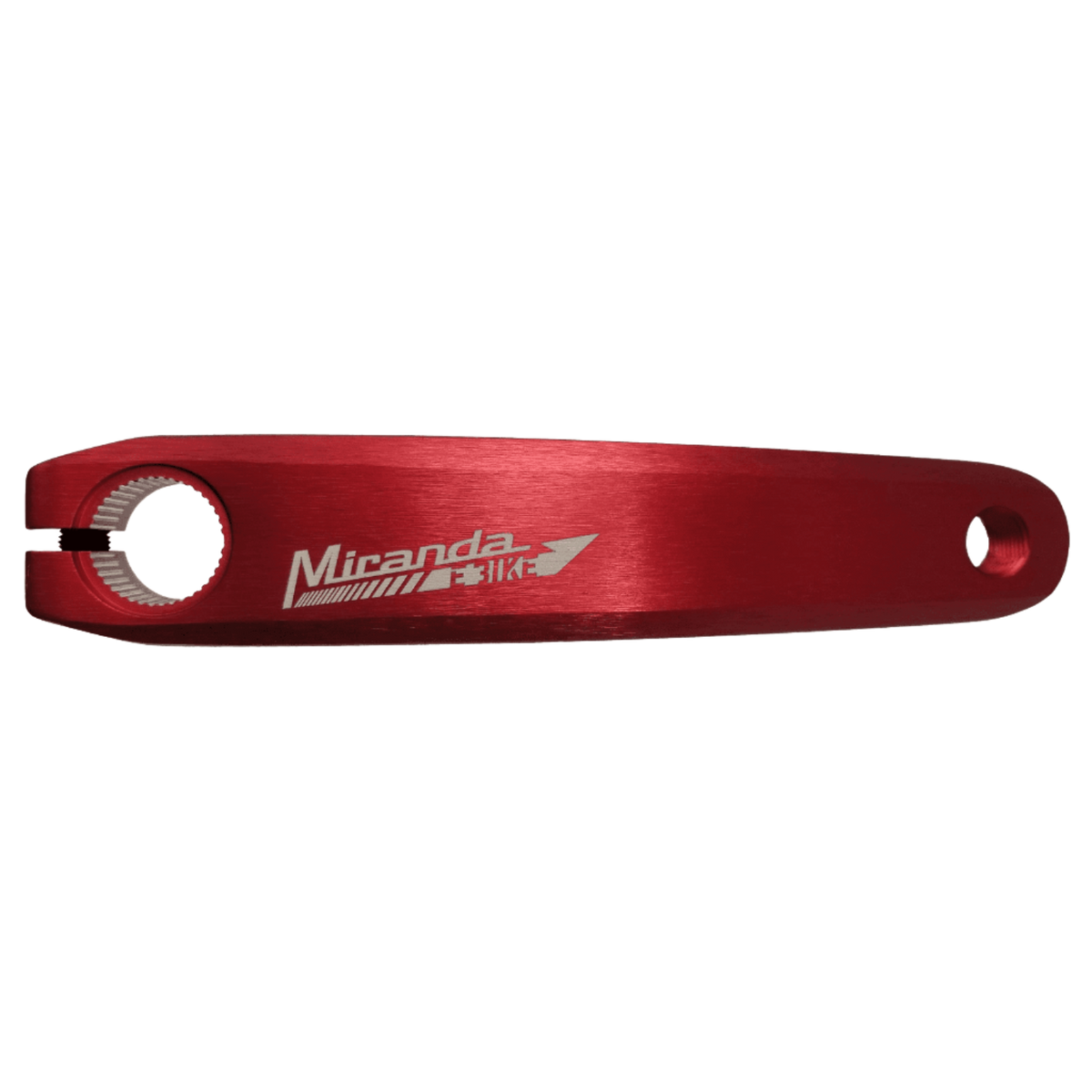

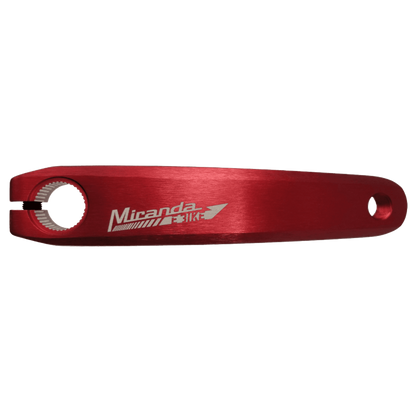

| Q:16 / 170 / Diamond Red | PD24SHD72L0R00002041 |

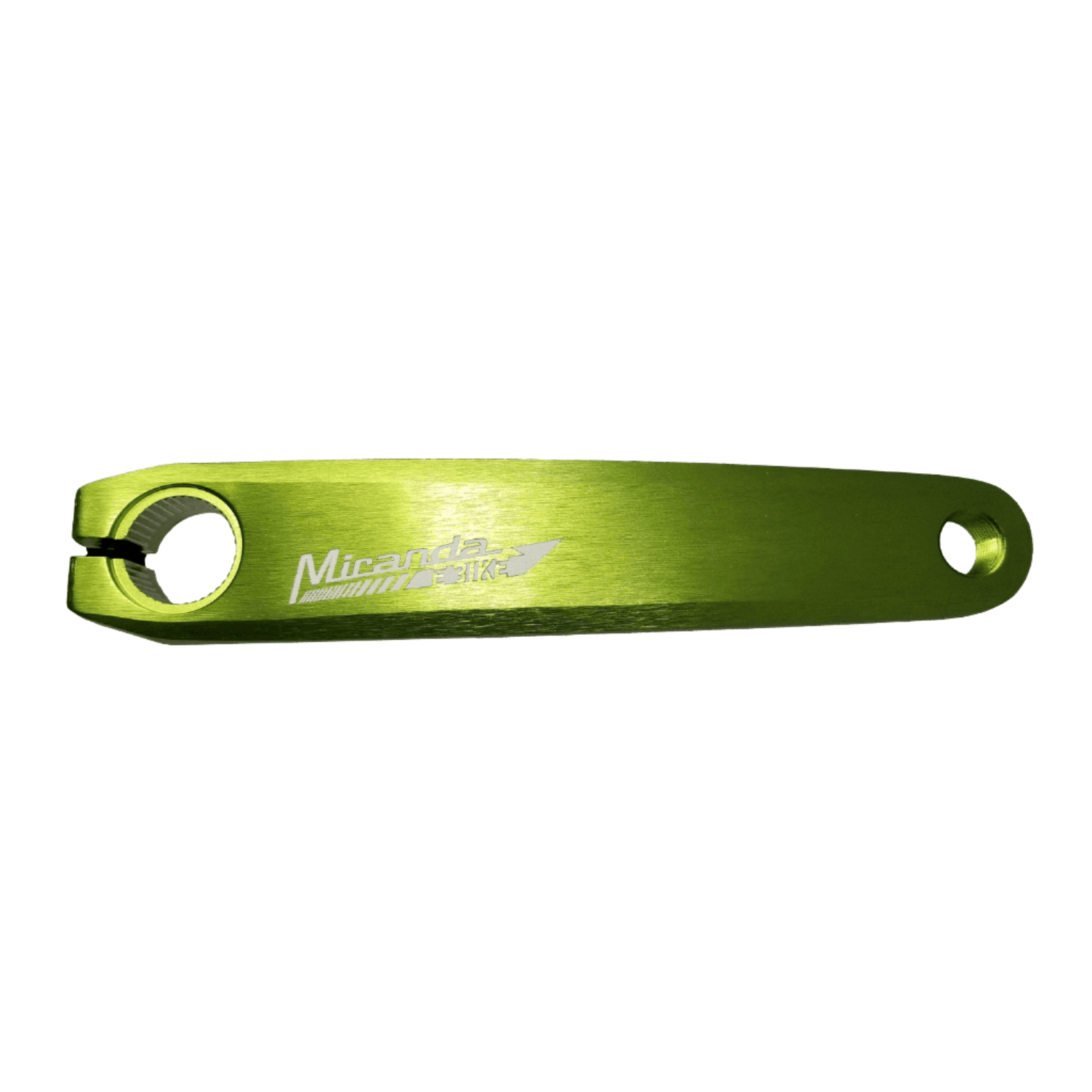

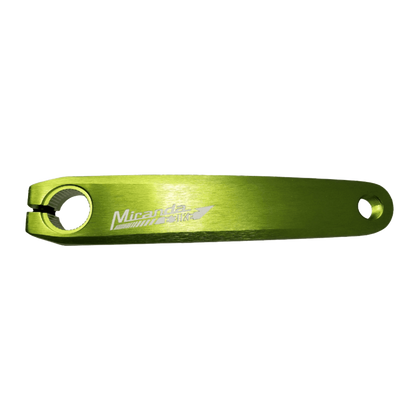

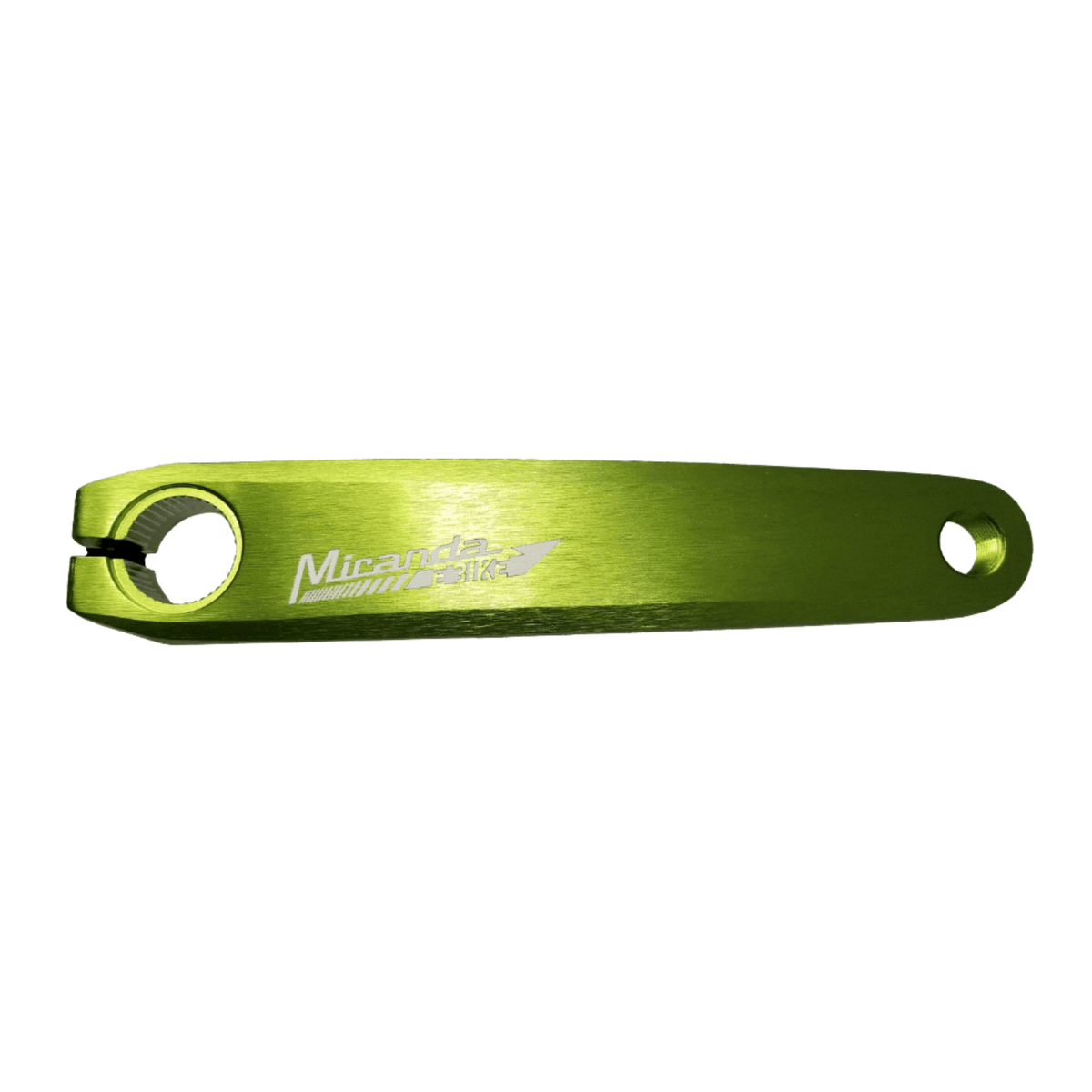

| Q:16 / 170 / Diamond Green | PD24SHD30L0R00002041 |

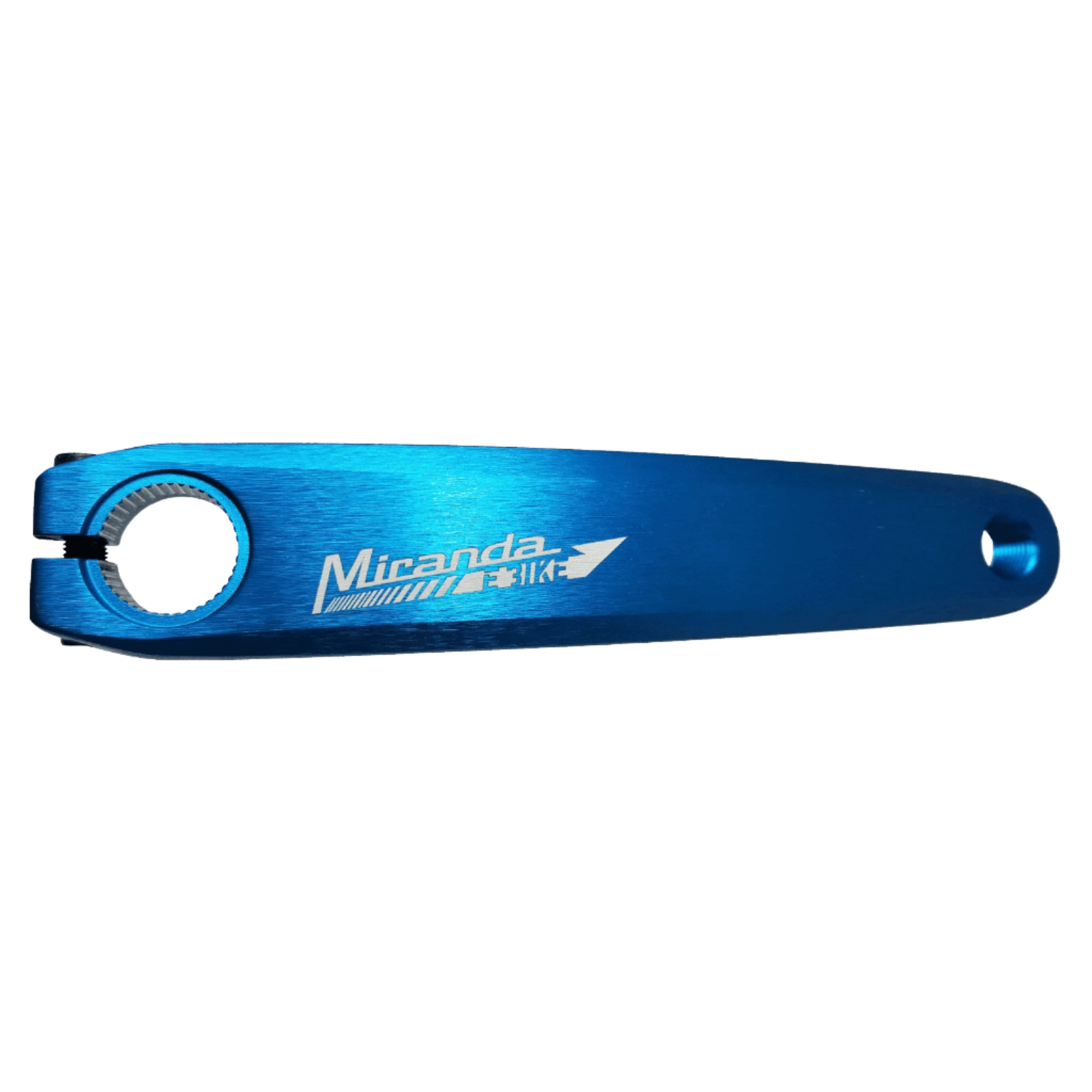

| Q:16 / 170 / Diamond Blue | PD24SHD10L0R00002041 |

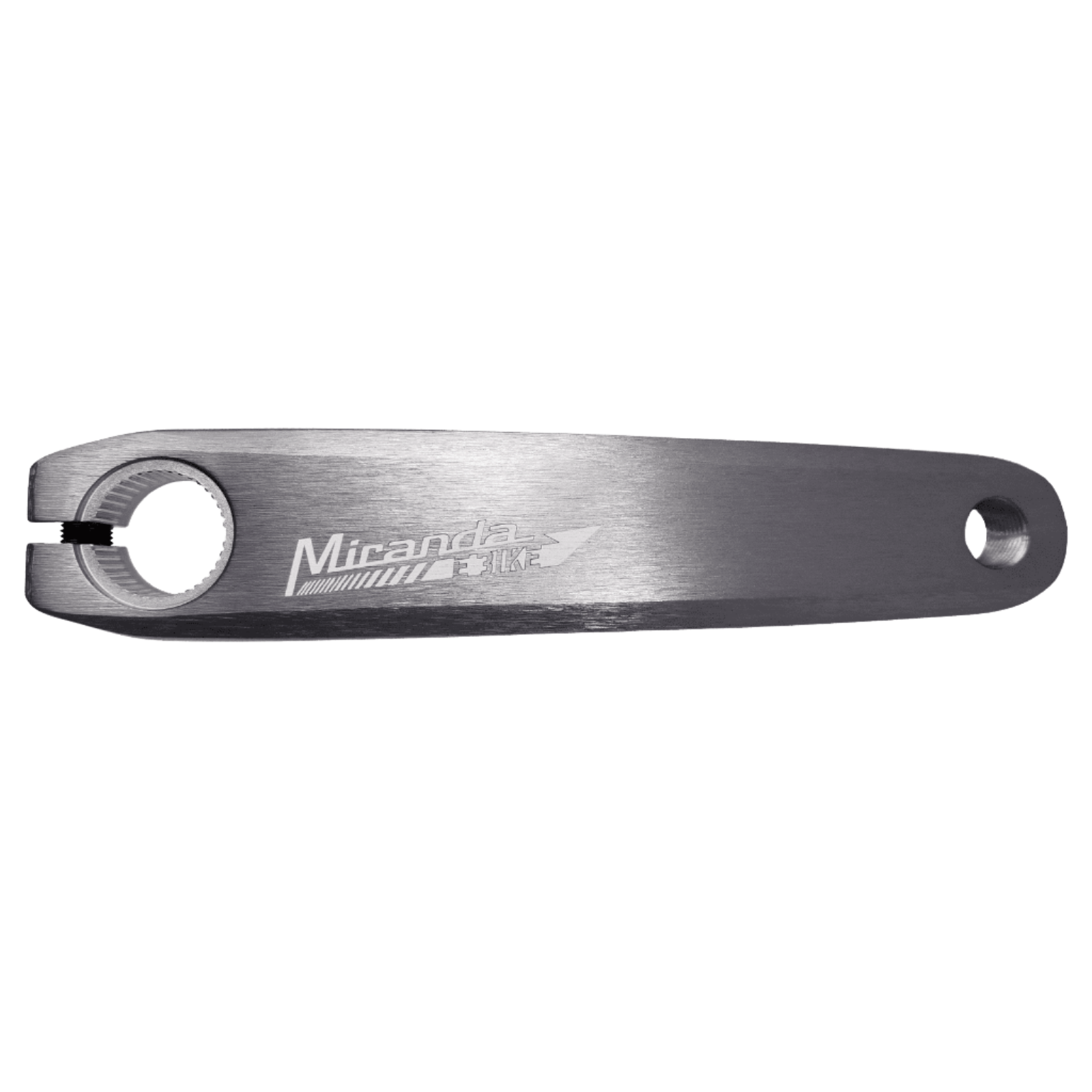

| Q:16 / 170 / Diamond Grey | PD24SHD20L0R00002041 |

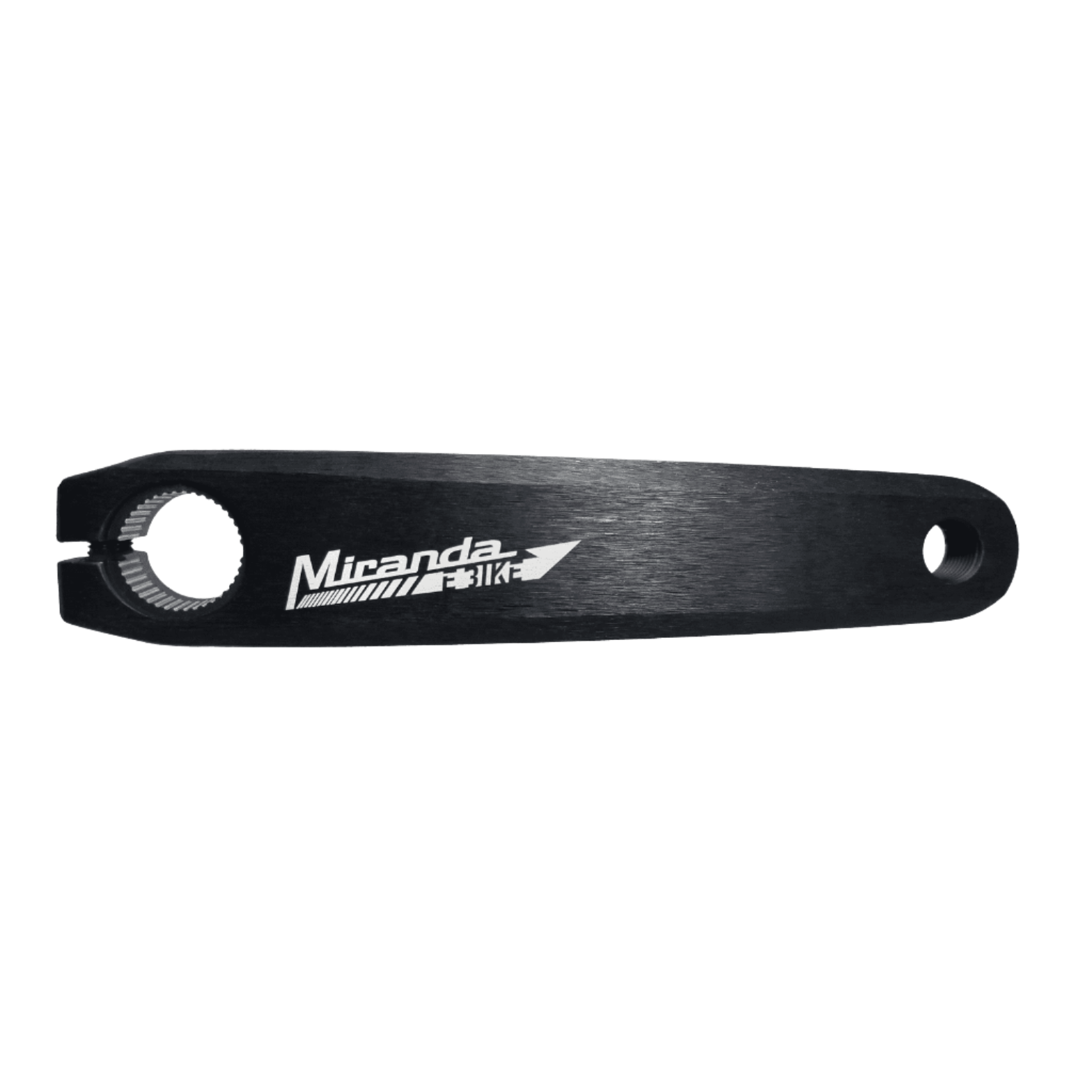

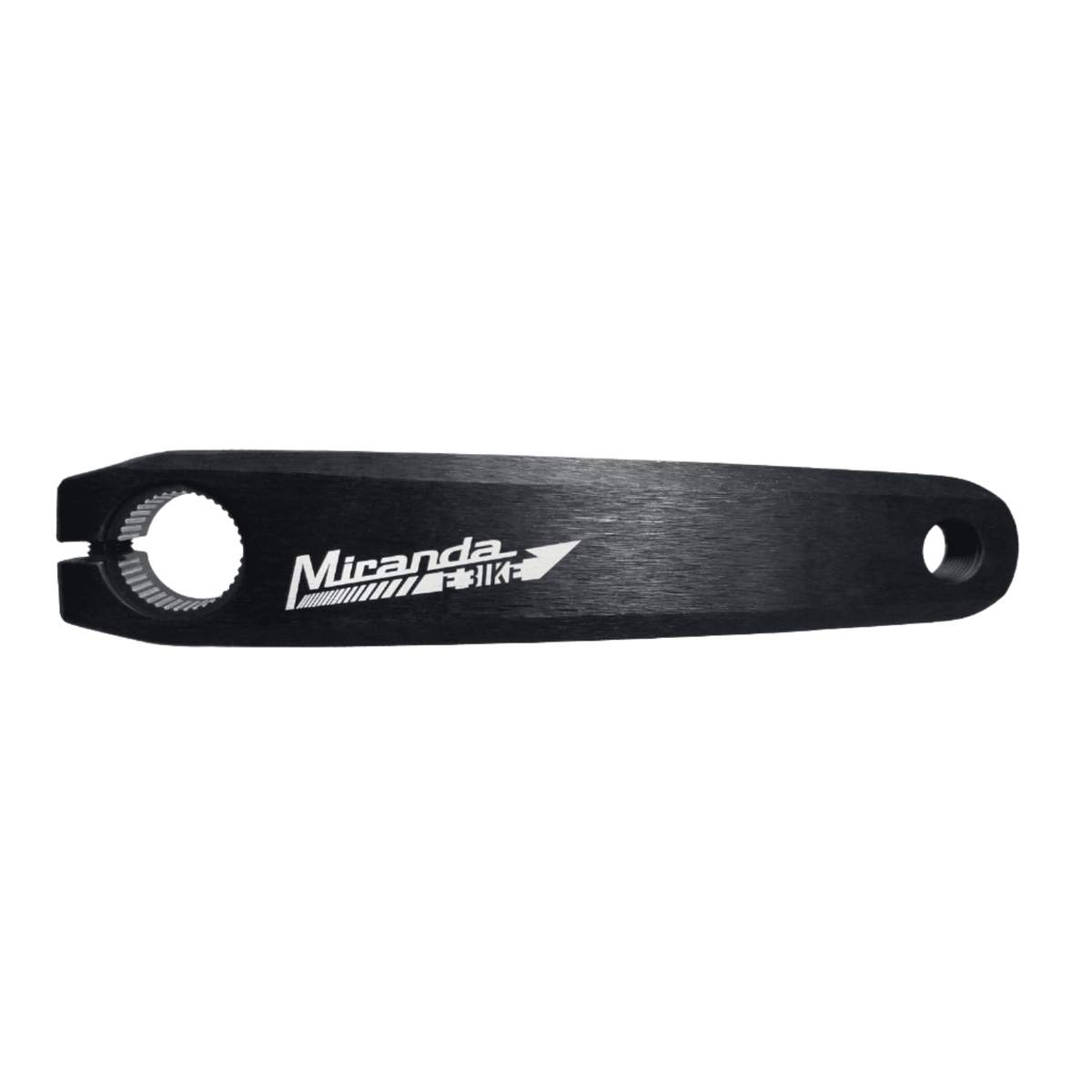

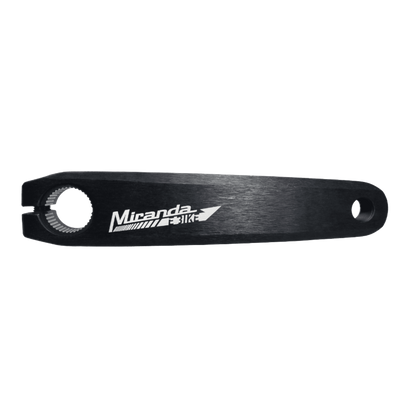

| Q:16 / 170 / Polished Black Plus | PD24SHF16PA700002041 |

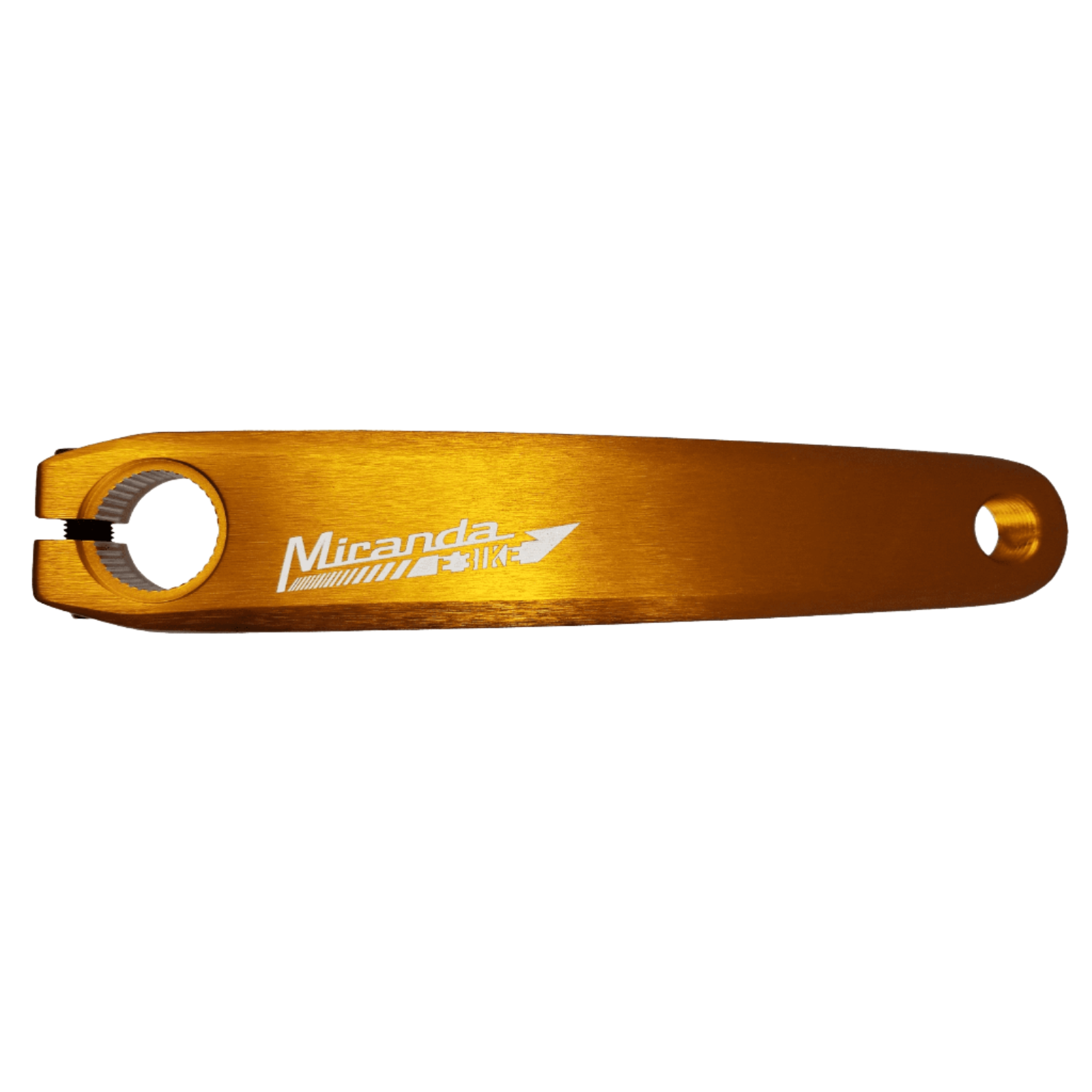

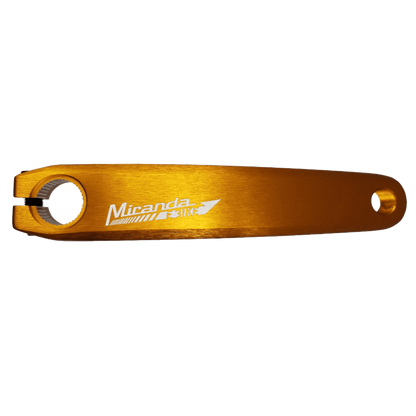

| Q:16 / 170 / Diamond Orange | PD24SHD70L0R00002041 |
Technical drawings and installation guides
Videos and technical guides
Specifications
EAN
5603895388090
Crank geometry
Q:16
Crank length (mm)
160
Color
Diamond Red
