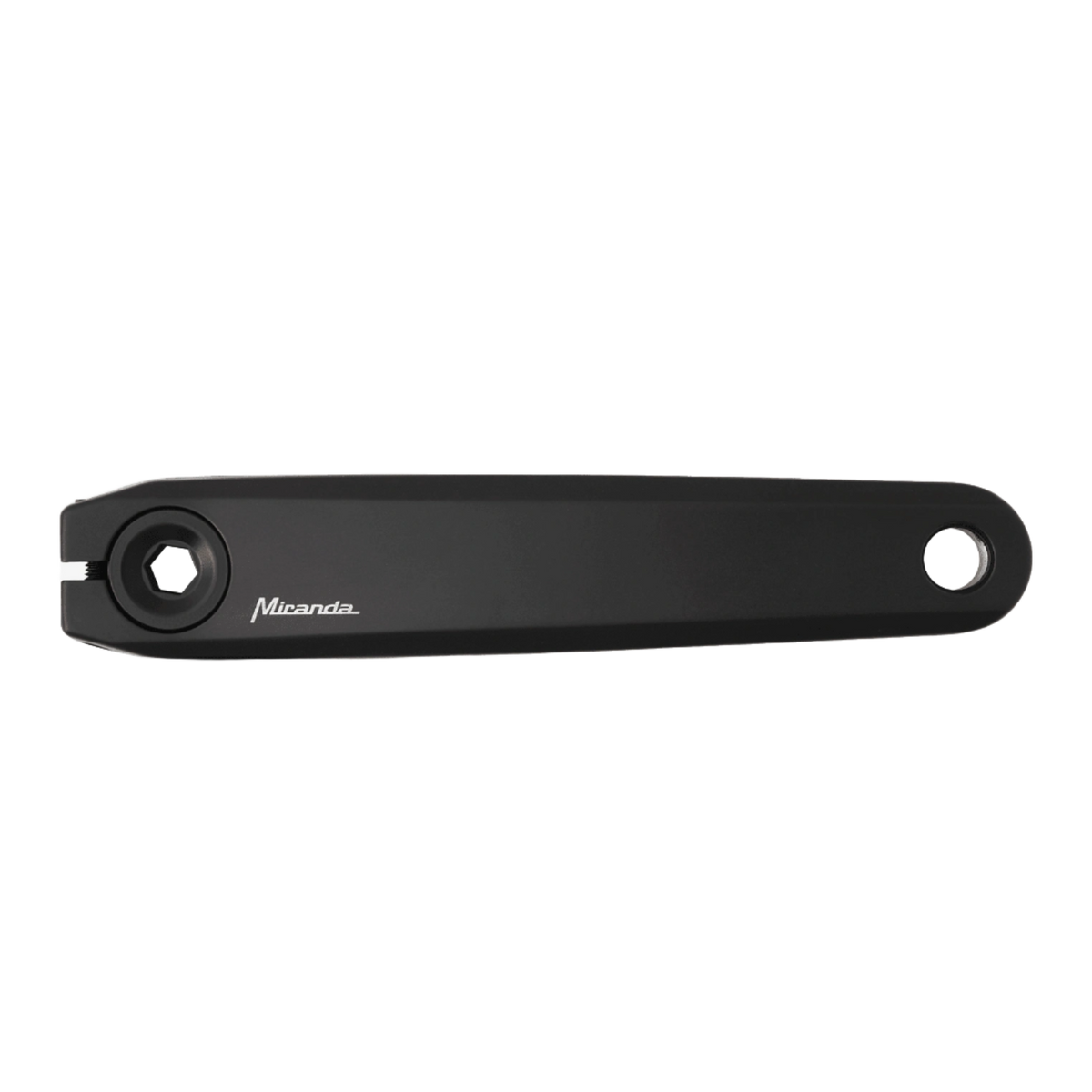

Delta LS Cranks SH

Regular price €66,00 EUR
Sale price €66,00 EUR Regular price
Shipping calculated at checkout.
In stock
Size
Q-Factor
Which Q-profile do I need?

Some bikes need different left and right crank profiles. Match the complete codes on both existing cranks, including any prefixes or suffixes.

See the illustrated Q-factor guide
Delta LS Shimano Crank Arms. Cold-forged aluminium construction. Choose crank length and Q-profile for your Shimano E6100 / E7000 / E8000 setup.
View full details

MIRANDA / CRANKS & CRANKSETS

The Delta LS combines Miranda cold-forged aluminium construction with interface-specific crank geometry. Match the arm length and Q-profile to your drive unit for a carefully selected replacement, made in Portugal.

At a glance

  • Cold-forged aluminium crank construction
  • Match length and geometry to your existing assembly

Technical details

Product specifications
Material Cold-forged aluminium
Interface / application Shimano E6100 / E7000 / E8000
Crank lengths (mm) 152, 155, 160, 165, 170
Crank geometry options Q:16, Q:35
Supplied as Left and right crank arms, with installation screws

Choose the right setup

Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.

Compare configurations and product codes
Configuration Product code
152 / Q:16 PD80SHT17CA700002041
155 / Q:16 PD57SHT17CA700002041
155 / Q:35 PDC0SHT17CA700002041
160 / Q:16 PD56SHT17CA700002041
165 / Q:16 PD58SHT17CA700002041
165 / Q:35 PDA6SHT17CA700002041
170 / Q:16 PD24SHT17CA700002041

Technical drawings and installation guides

Videos and technical guides

Specifications

EAN
5603895312064
Crank length (mm)
165
Crank geometry
Q:16
interface
SH
