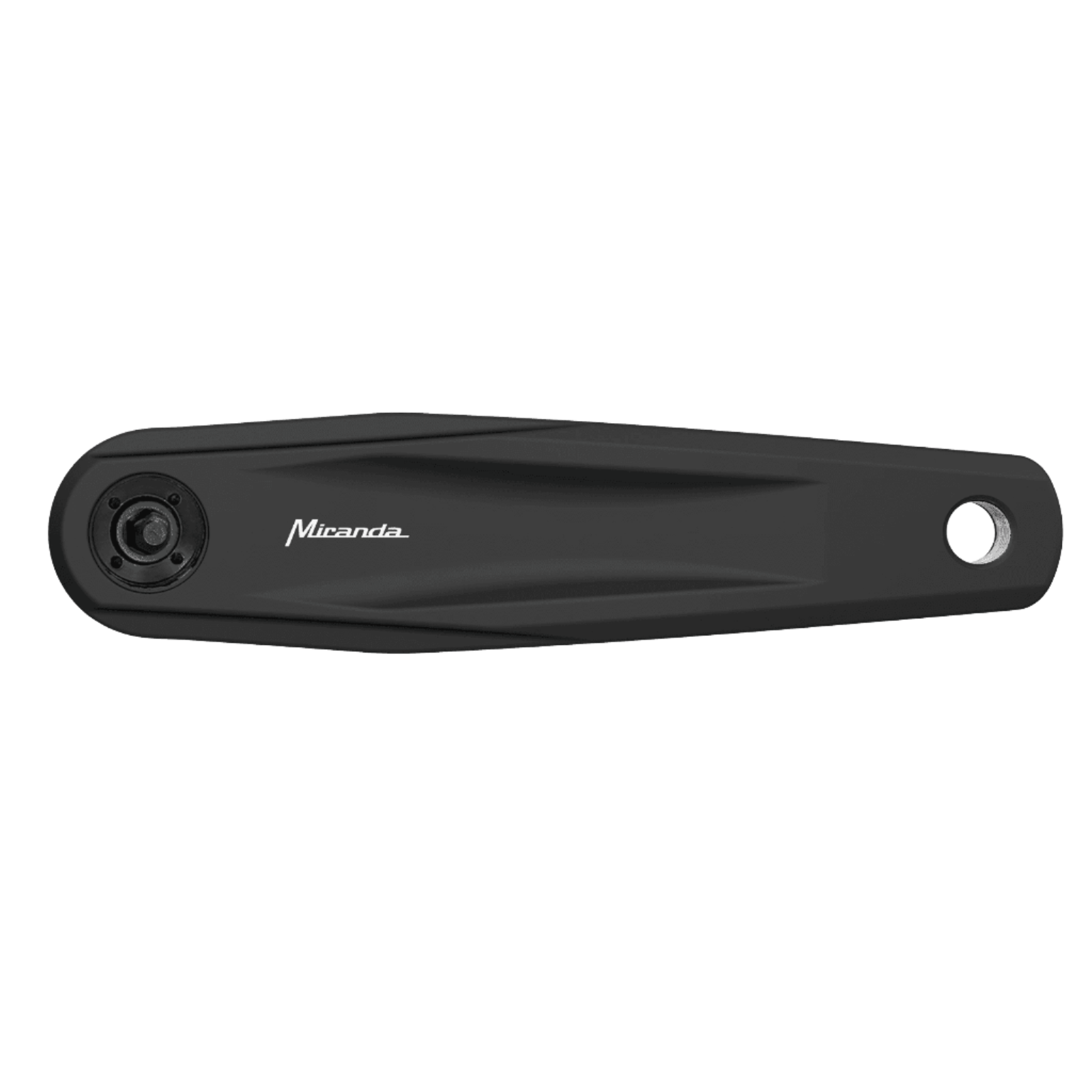

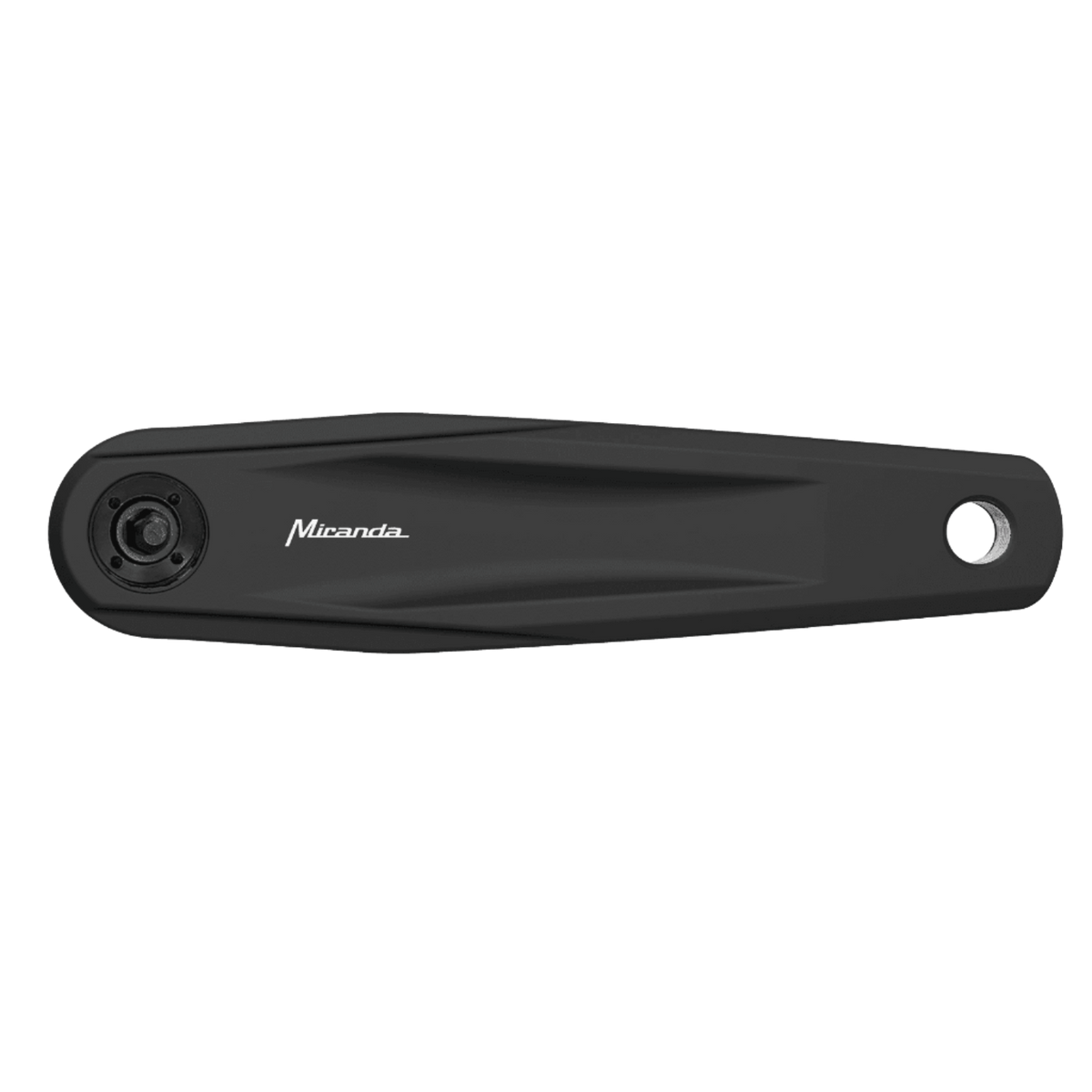

Kies Cranks ISIS

€75,00 EUR

Shipping calculated at checkout.

In stock

Size 150 160 170

Q-factor Q:16

Which Q-profile do I need?

Some bikes need different left and right crank profiles. Match the complete codes on both existing cranks, including any prefixes or suffixes.

See the illustrated Q-factor guide

Shop reviews Read shop reviews on Trustpilot

Environmental Product Declaration

Environmental transparency.

Explore Miranda's independently verified declaration for selected forged aluminium crank models.

Verified by SGS ICS Italia ISO 14025

Read the EPD Official registration

What the declaration covers

Scope: Raw materials to factory gate (cradle-to-gate).
Models studied: Delta, Kappa, Sigma, Epsilon, Classic, PSI, Helius, Virage, Kies and Mythos.
Declared unit: 1 kg of forged aluminium cranks and the corresponding packaging.
Data: 2024 manufacturing data, with worst-case results across the assessed models.

The EPD lists the assessed references, lengths and finishes. See the document for the coverage of each model and variant.

EPD-IES-0027768:001

Kies ISIS Crank Arms. Cold-forged aluminium construction. Choose crank length and Q-profile for your ISIS setup.

View full details

MIRANDA / CRANKS & CRANKSETS

The Kies is an aluminium crank option for a considered e-bike replacement. Made in Portugal using Miranda cold-forging technology, it lets you match the arm length and Q-profile to the geometry your bike needs.

At a glance

Cold-forged aluminium crank construction
Match length and geometry to your existing assembly

Technical details

Product specifications
Material	Cold-forged aluminium
Interface / application	ISIS
Crank lengths (mm)	150, 160, 170
Crank geometry options	Q:16
Supplied as	Left and right crank arms, with installation screws

Choose the right setup

Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.

Compare configurations and product codes

Configuration	Product code
150 / Q:16	PN04IBT35CA70000S141
160 / Q:16	PN02IBT35CA70000S141
170 / Q:16	PN01IBT35CA70000S141

Technical drawings and installation guides

Videos and technical guides

Specifications

EAN

5603895456737

Crank length (mm)

150

Crank geometry

Q:16

interface

ISIS
