MIRANDA / BOTTOM BRACKETS

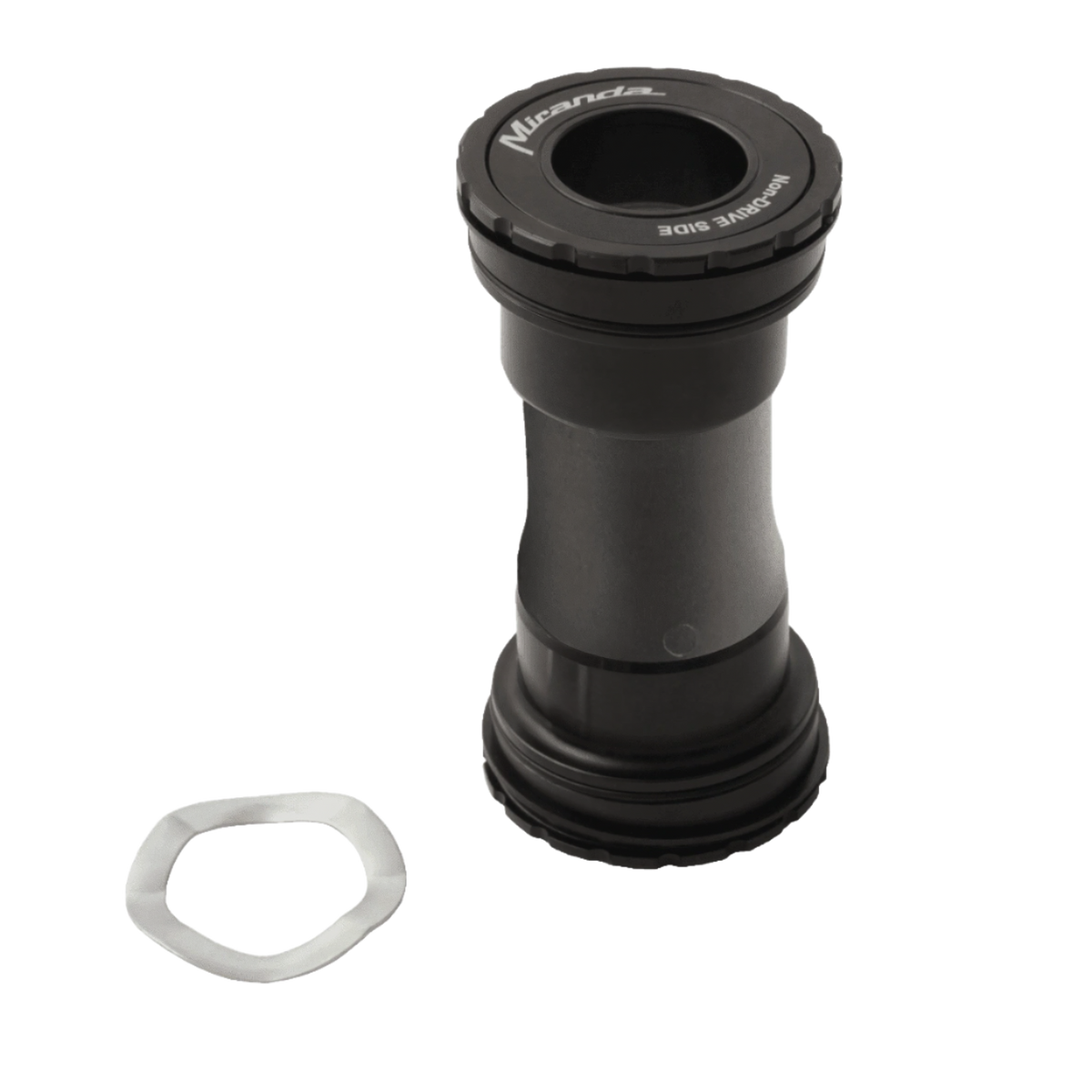

The Miranda PressFit bottom bracket supports a matching stepped 24/22 mm spindle in a press-fit frame assembly. Check the shell dimensions and spacer arrangement so the spindle is supported and positioned correctly.
At a glance
- Match the frame shell and spindle interface
- Assembly-specific bearing support
- Check the spacer arrangement before fitting
Technical details
| Frame interface | Press fit |
|---|---|
| Spindle compatibility | Stepped 24/22 mm |
| Material | Aluminium |
Choose the right setup
A 24/22 mm spindle requires the matching stepped bearing arrangement. Do not substitute a 24/24 mm bottom bracket based only on the larger spindle diameter. Confirm the frame shell dimensions and installation procedure.
Specifications
EAN
5603895468471
Product reviews
Options & availabilityMiranda BB Press Fit 22/24
