MIRANDA / CRANKS & CRANKSETS

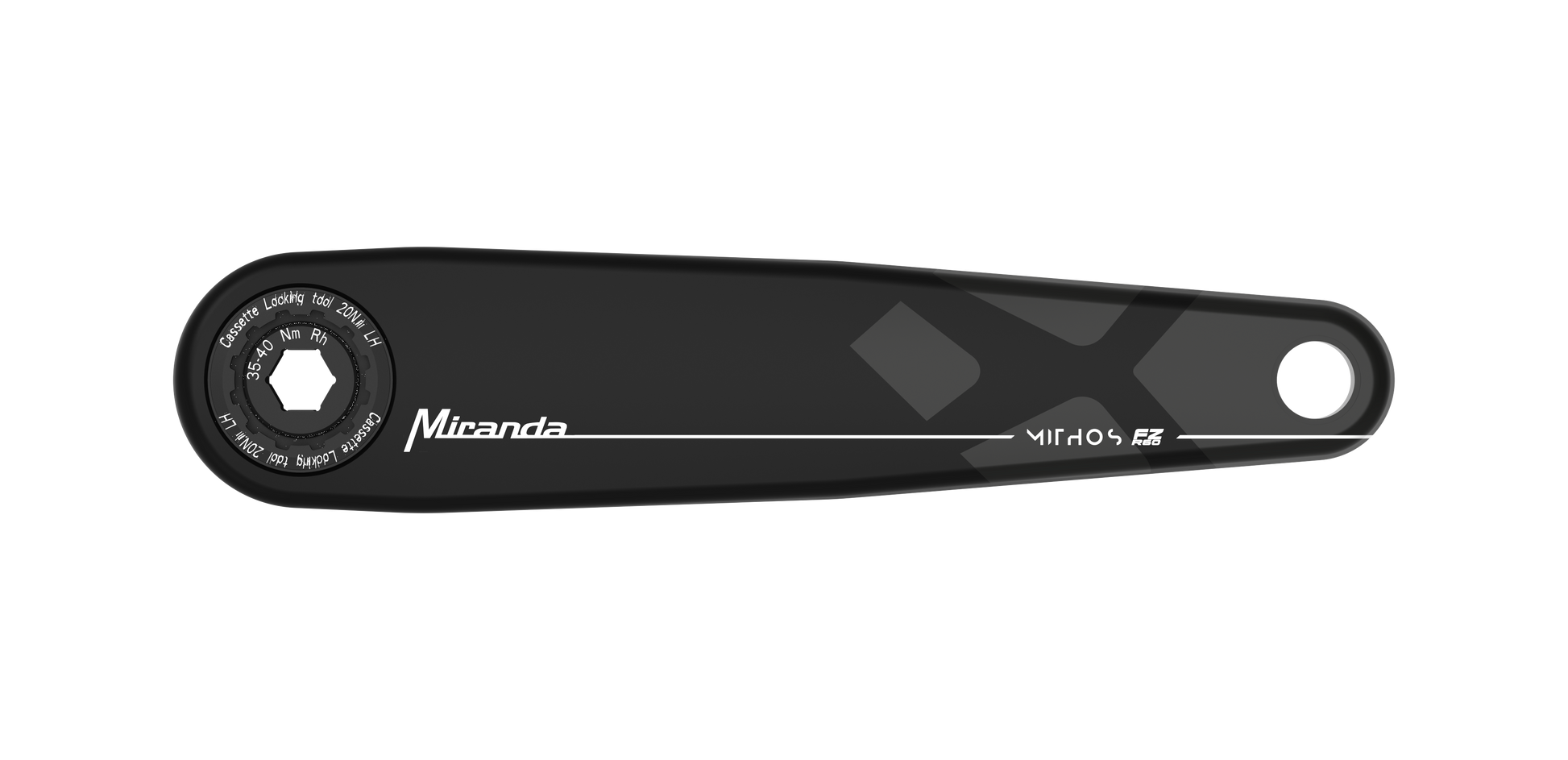

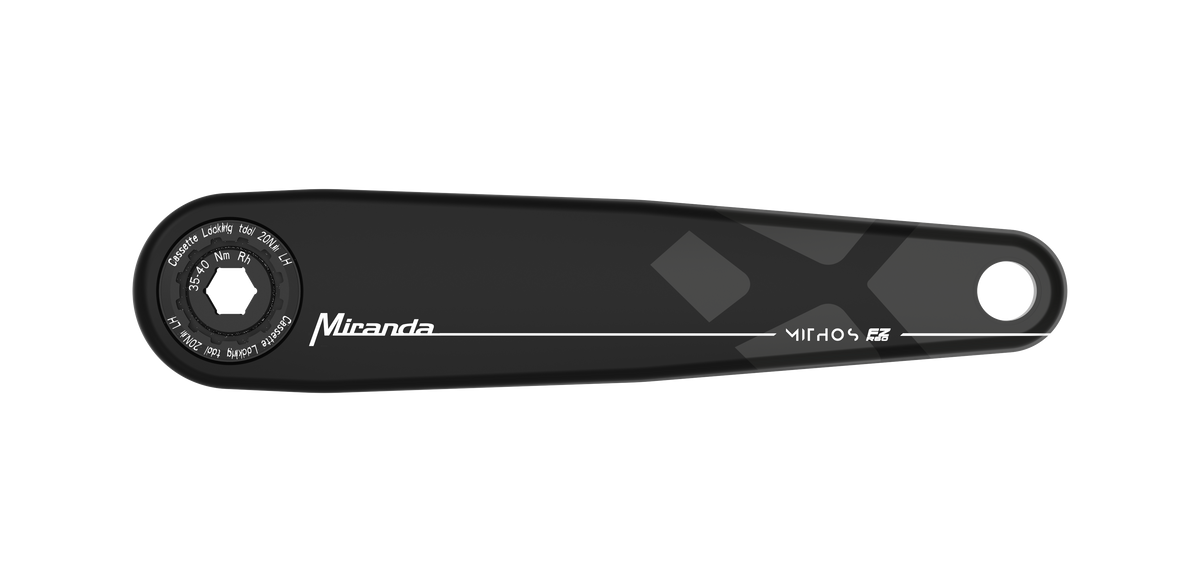

The Mythos FZR crank pairs an aluminium construction with compact Q-profile options for a carefully matched e-bike setup. Choose the geometry that clears your frame and aligns with your drive unit.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | FZR |
| Crank lengths (mm) | 160 |
| Crank geometry options | Q:8, Q:12 |
| Supplied as | Left and right crank arms, with installation screws |
| Drive systems to check | Fazua Ride 60 / Mahle M40; verify the exact interface and crank geometry |
Choose the right setup
Match the drive-unit interface first, then choose the crank length and complete Q-profile. Miranda Q codes identify crank geometry; they are not the total Q-factor of the assembled bike. Check frame clearance and left/right geometry before installation.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 160 / Q:8 | PY04FRT35CA70000S941 |
| 160 / Q:12 | PY06FRT35CA70000S941 |
Technical drawings and installation guides
Videos and technical guides
Specifications
Crank length (mm)
160
Crank geometry
Q:8
