Spider Avinox BCD 104

€76,00 EUR

In stock

Style CL57

Carbon footprint certificate not available for this product.

Spider Avinox BCD 104. Match motor compatibility, chainring mounting and chainline for your setup.

MIRANDA / SPIDERS

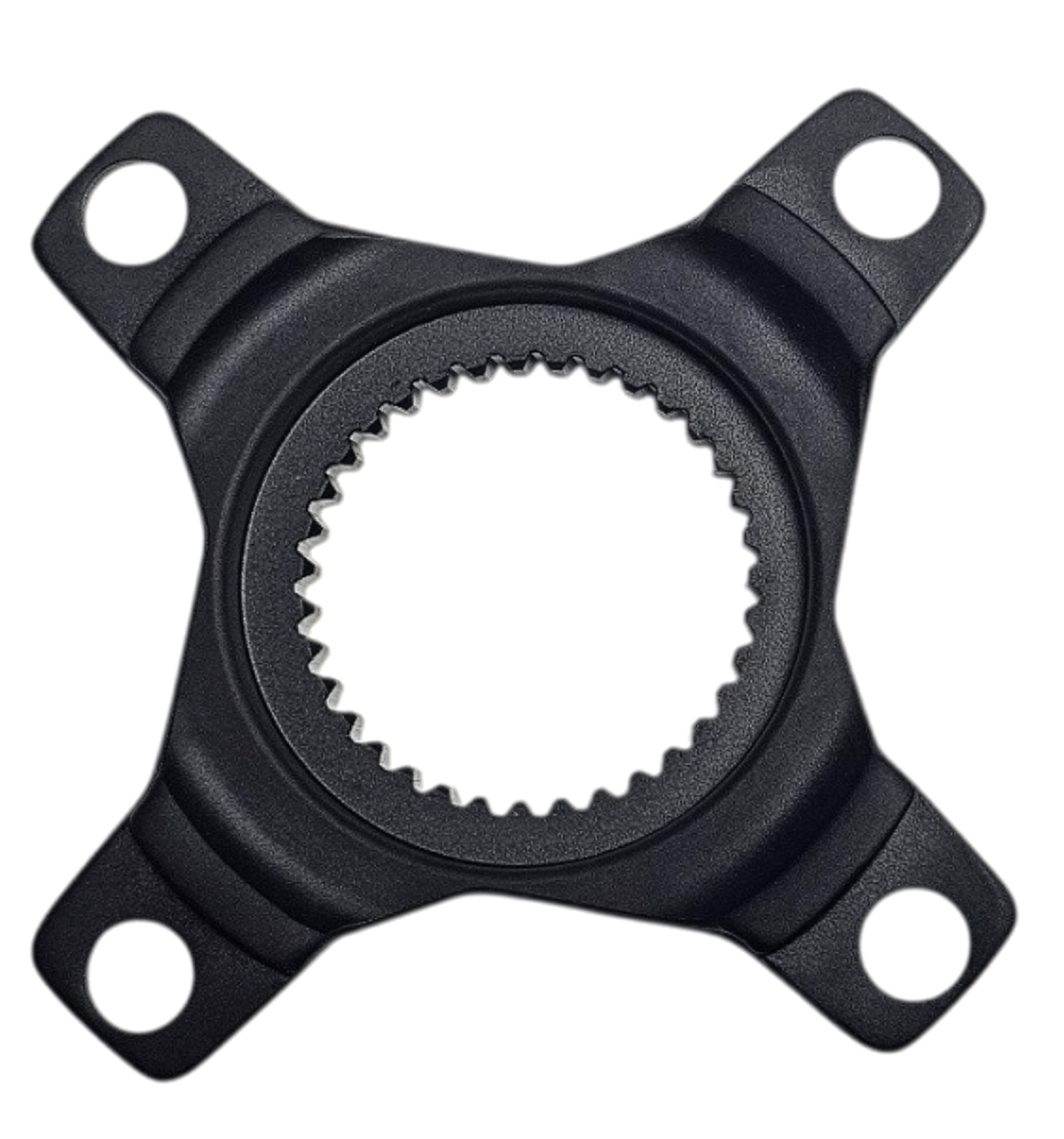

An aluminium BCD 104 spider for the DJI Avinox drivetrain. The CL57 configuration must be selected together with the chainring mounting side to achieve the chainline your bike needs.

At a glance

Motor-specific mounting interface
BCD 104 chainring mounting
Aluminium construction

Technical details

Product specifications
Drive system / application	DJI Avinox
Chainring mounting	BCD 104 mm
Material	Aluminium
Configurations	CL57

Choose the right setup

Match the motor generation or XMOD interface, chainring BCD, chainline and mounting side. Installing a chainring inside or outside the spider changes the chainline. Use the technical drawing for the complete assembly before ordering.

Technical drawings and installation guides

Specifications

Chainline configuration

CL57

BCD (mm)

104
