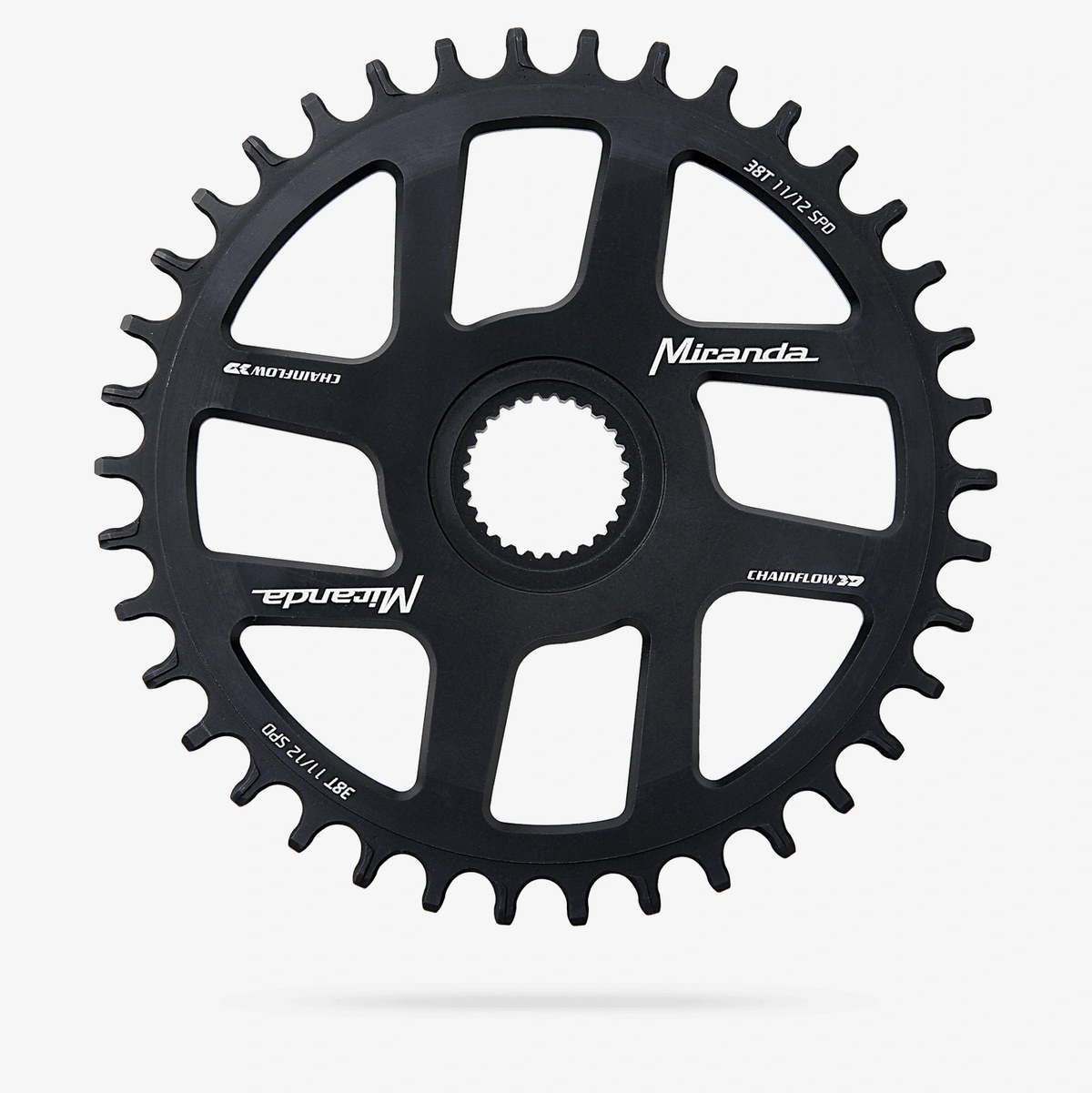

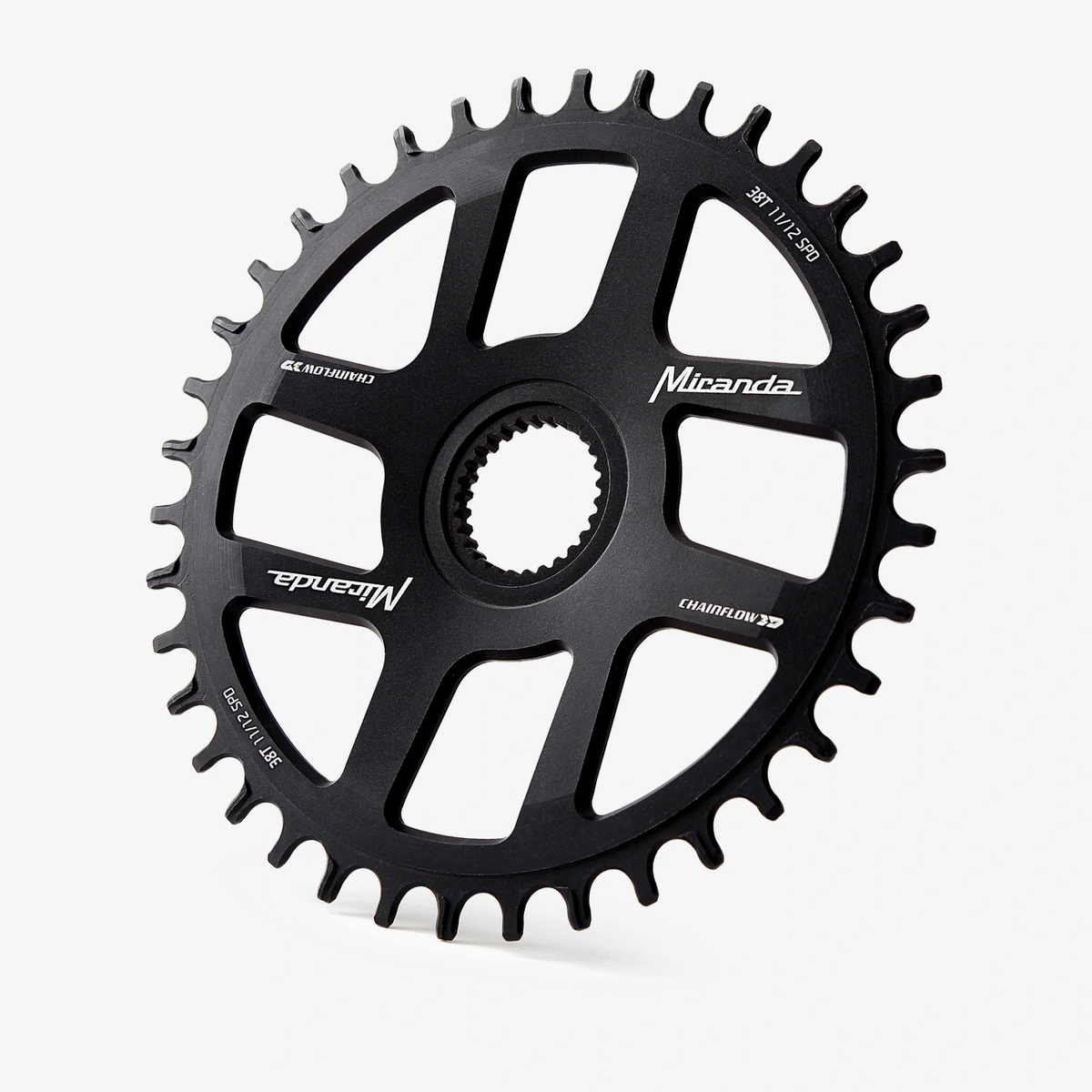

MIRANDA / CHAINRINGS
The SE12 profile brings Miranda Chainflow 3D chain-guiding design to the specified 12-speed chain systems. Choose the tooth count, material and mounting for your drivetrain, with chain compatibility checked against the SE12 specification.
At a glance
- Chainflow 3D SE12 tooth profile
- Choose gearing by tooth count
- Match chain compatibility before installation
Technical details
| Tooth profile | Chainflow 3D SE12 |
|---|---|
| Recommended chain systems | SRAM 12-speed Eagle T-Type and Road systems; Shimano 12-speed Hyperglide+; KMC DLC and X12 |
| Not recommended | 13-speed chains |
| Drive system / application | Bosch G4 |
| Mounting | Direct mount / spiderless |
| Tooth counts (T) | 36, 38 |
| Configurations | Boost, Standard |
Choose the right setup
Match the mounting interface or BCD, tooth count, chain specification and chainline. Direct-mount interfaces and different motor generations are not interchangeable just because they use the same tooth count.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 36 / Boost | RU360033A22L7A000046 |
| 38 / Standard | RU380033A22L8A000041 |
Specifications
EAN
5603895471068
Chainring teeth (T)
36
Configuration
Boost
Customer rating
Options & availabilitySpiderless Bosch G4 CF3D SE12 V1
