MIRANDA / CHAINRINGS

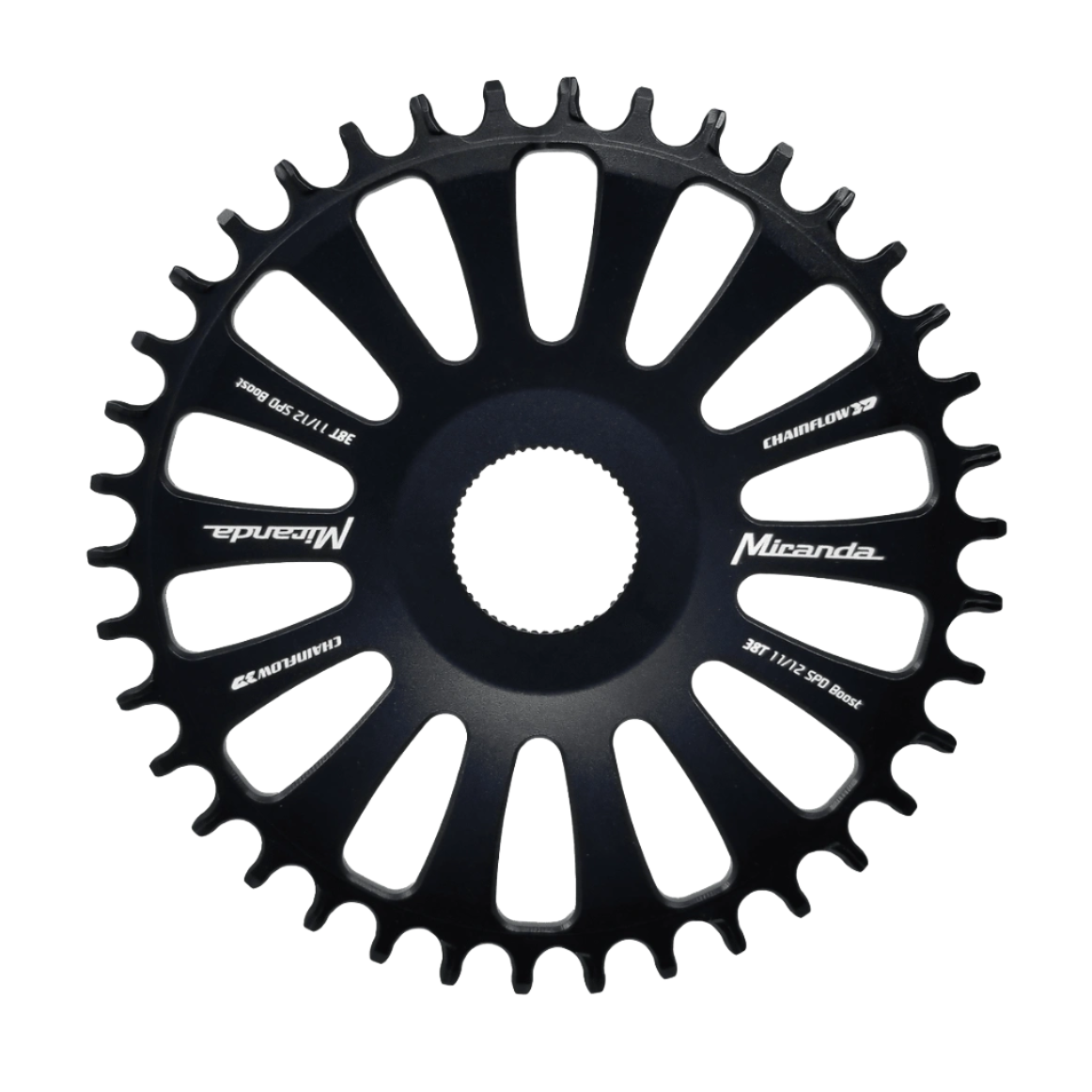

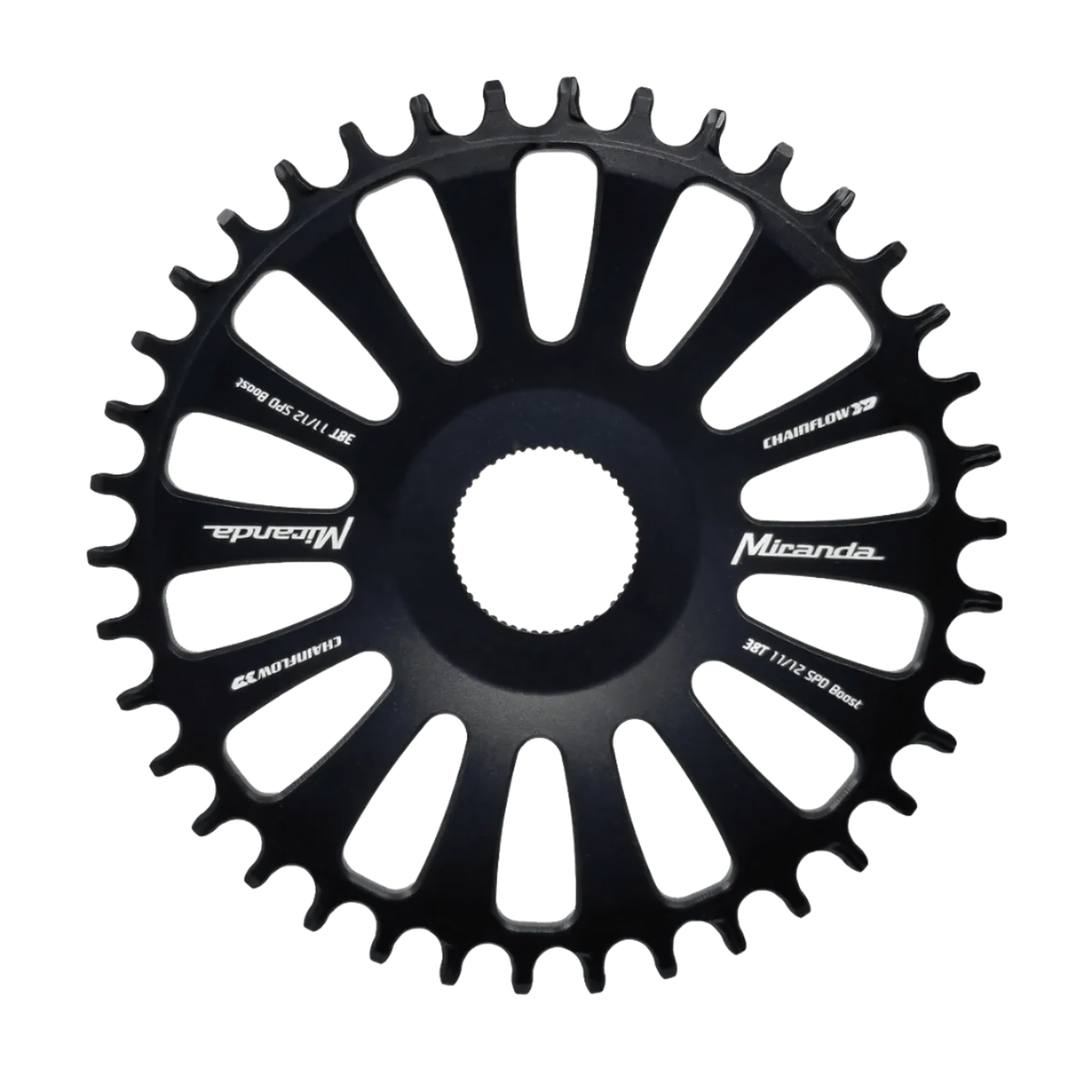

Miranda Chainflow 3D uses a dedicated T-shaped tooth profile to guide the chain in a single-chainring drivetrain. Choose the tooth count and mounting for your gearing, then match the profile to the recommended chain systems.
At a glance
- Chainflow 3D tooth profile
- Choose gearing by tooth count
- Match chain compatibility before installation
Technical details
| Tooth profile | Chainflow 3D |
|---|---|
| Recommended chain systems | 9-, 10- and 11-speed chains, plus SRAM Eagle non T-Type chains |
| Not recommended | SRAM 12-speed Eagle T-Type and Road systems; Shimano 12-speed Hyperglide+; KMC DLC / X12; 13-speed chains |
| Drive system / application | Shimano |
| Mounting | Direct mount / spiderless |
| Tooth counts (T) | 32, 34, 36, 38 |
| Configurations | Boost, Standard |
Choose the right setup
Match the mounting interface or BCD, tooth count, chain specification and chainline. Direct-mount interfaces and different motor generations are not interchangeable just because they use the same tooth count.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 32 / Boost | RJ320333A22L0J000046 |
| 34 / Standard | RJ340333A22L0C000041 |
| 34 / Boost | RJ340333A22L0K000046 |
| 36 / Standard | RJ360333A22L0D000041 |
| 36 / Boost | RJ360333A22L0L000046 |
| 38 / Standard | RJ380333A22L0E000041 |
| 38 / Boost | RJ380333A22L0M000046 |
Videos and technical guides
Specifications
EAN
5603895450964
Chainring teeth (T)
32
Configuration
Boost
