MIRANDA / XMOD SPINDLES
The 24/24 mm XMOD spindle connects your Miranda modular crank arms to the matching bottom bracket. Choose the intended road, gravel or MTB configuration and material, then check the assembly drawing for chainline and spacers.
At a glance
- XMOD modular crank interface
- Configuration-specific spindle lengths
- Steel and titanium options, depending on configuration
Technical details
| Spindle / bearing configuration | 24/24 mm |
|---|---|
| Assembly system | Miranda XMOD |
| Assembly options | Superboost, GR Double, MTB, MTB Boost, Road+ |
| Material | Steel, Titanium |
Spindle dimensions by configuration

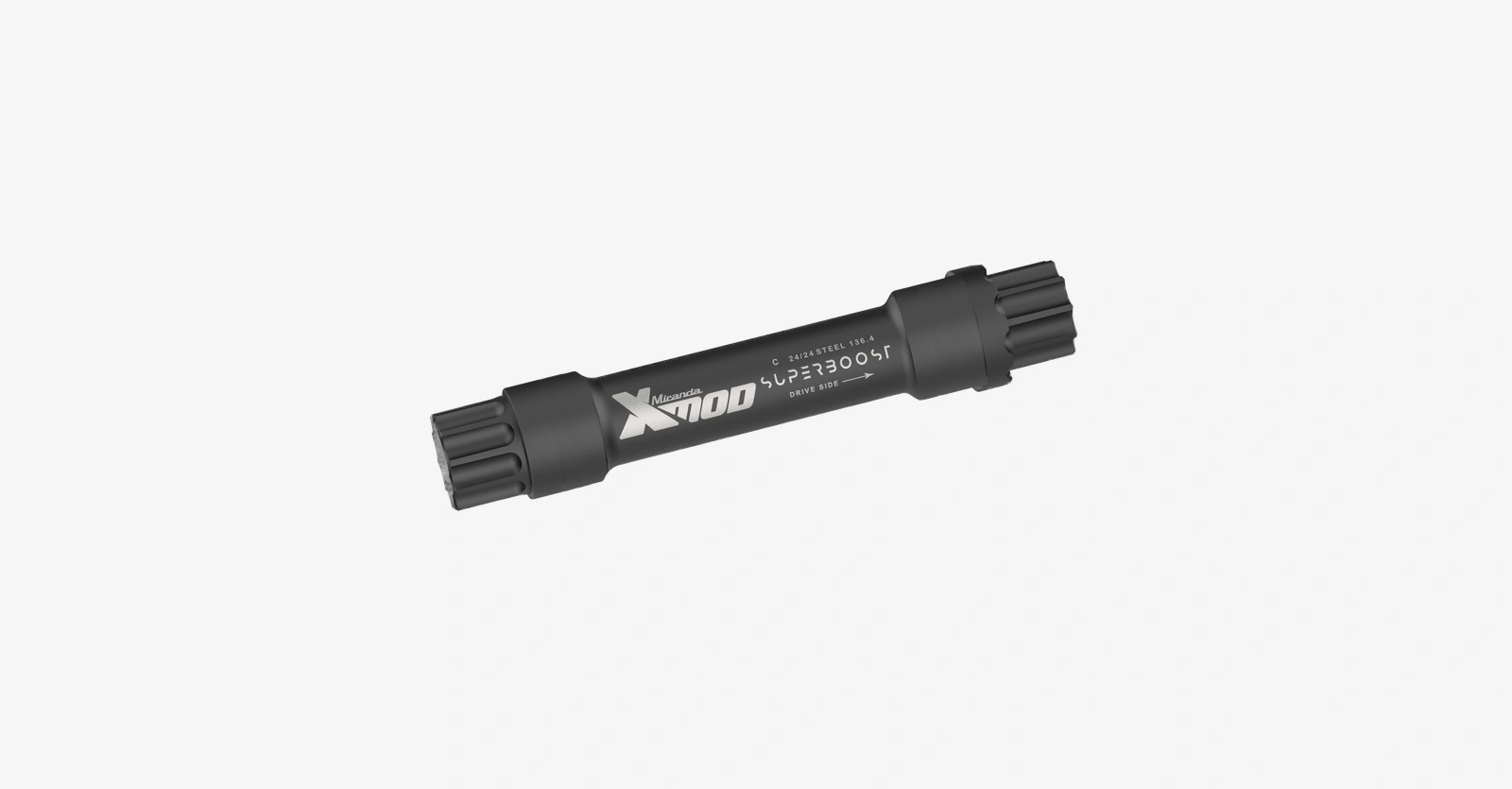

| Superboost / Steel | 136.4 mm spindle length; steel |
|---|---|
| GR Double / Steel | 127 mm spindle length; steel |

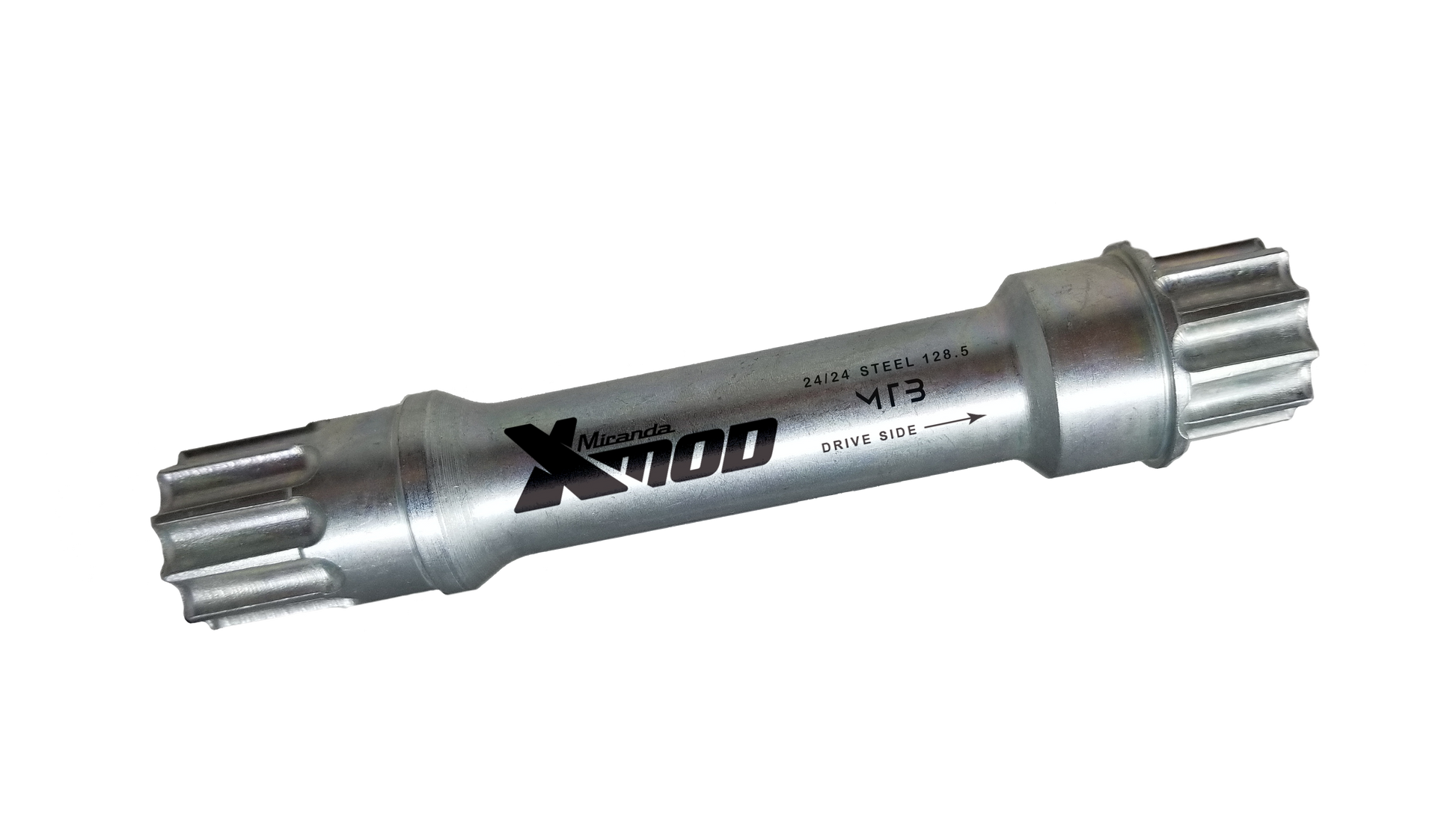

| MTB / Steel | 128.5 mm spindle length; steel |
| MTB Boost / Steel | 133.4 mm spindle length; steel |
| MTB Boost / Titanium | 133.4 mm spindle length; titanium |
| Road+ / Steel | 125.5 mm spindle length; steel |

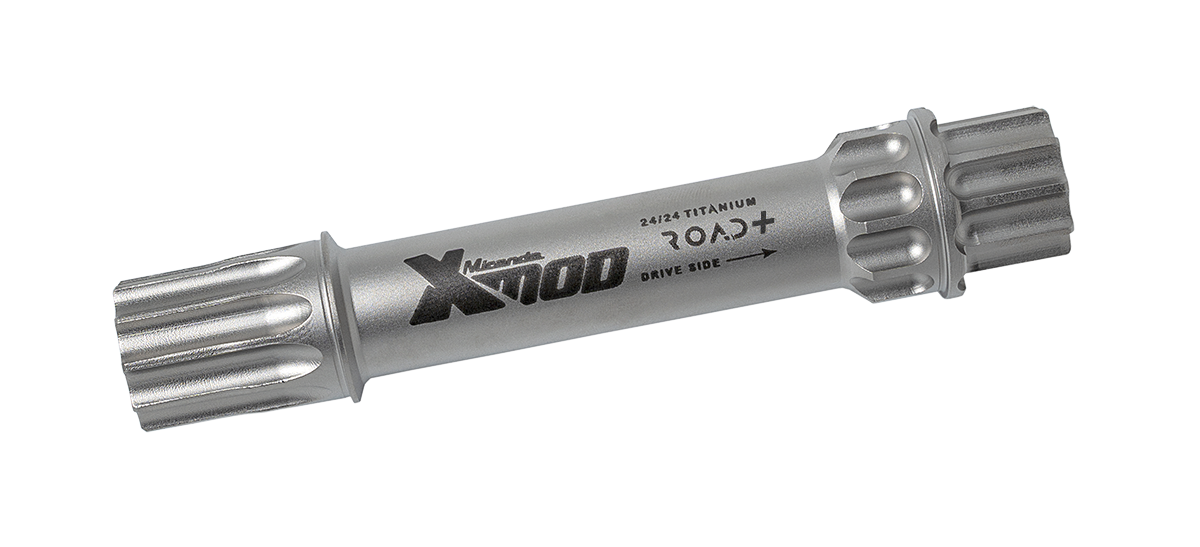

| Road+ / Titanium | 125.5 mm spindle length; titanium |
Choose the right setup
Match the bearing-seat diameters, spindle length, frame-shell width and spacer stack as one assembly. 24/22 mm and 24/24 mm bearing arrangements are different. The completed Q-factor and chainline also depend on the crank arms and chainring position.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| Superboost / Steel | EXB0203003FCZCNC0849 |
| GR Double / Steel | EXB0202703FCZC000049 |
| MTB / Steel | EXB0202303FCZC000049 |
| MTB Boost / Steel | EXB0202903FCZCNC0149 |
| MTB Boost / Titanium | EXB0202903TI00000149 |
| Road+ / Steel | EXB0202603FCZCNC2549 |
| Road+ / Titanium | EXB0202603TI000P2549 |
