MIRANDA / CRANKS & CRANKSETS

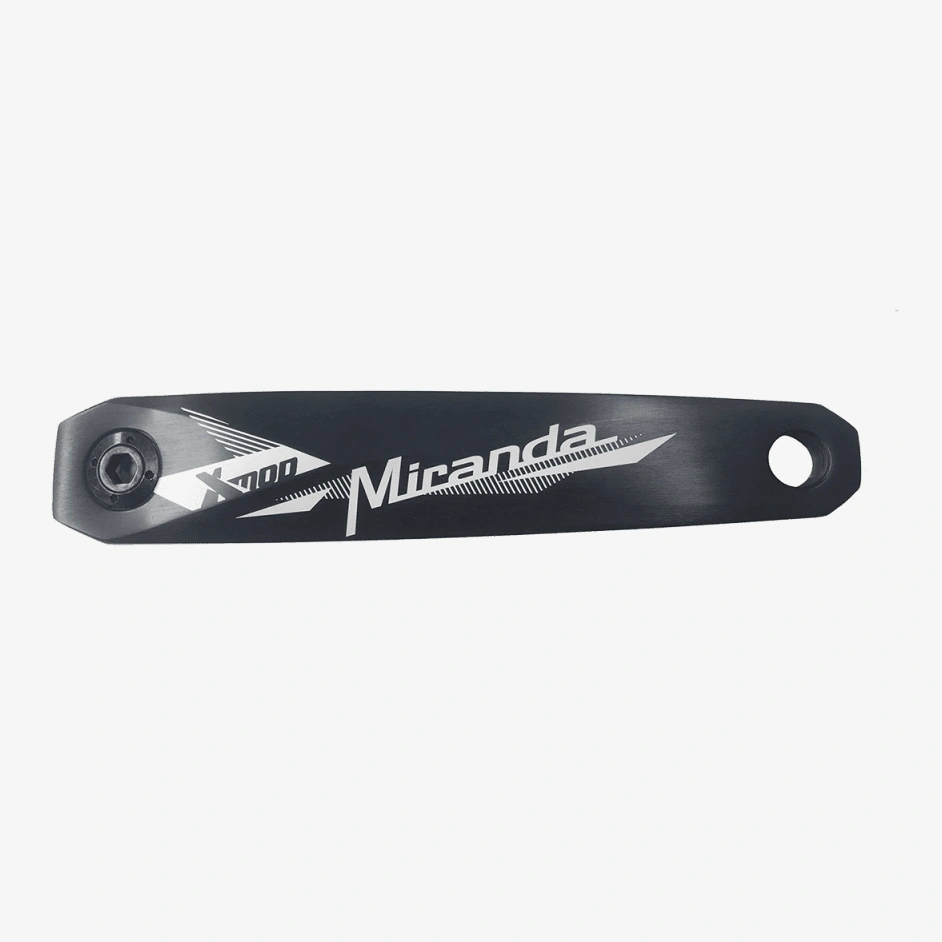

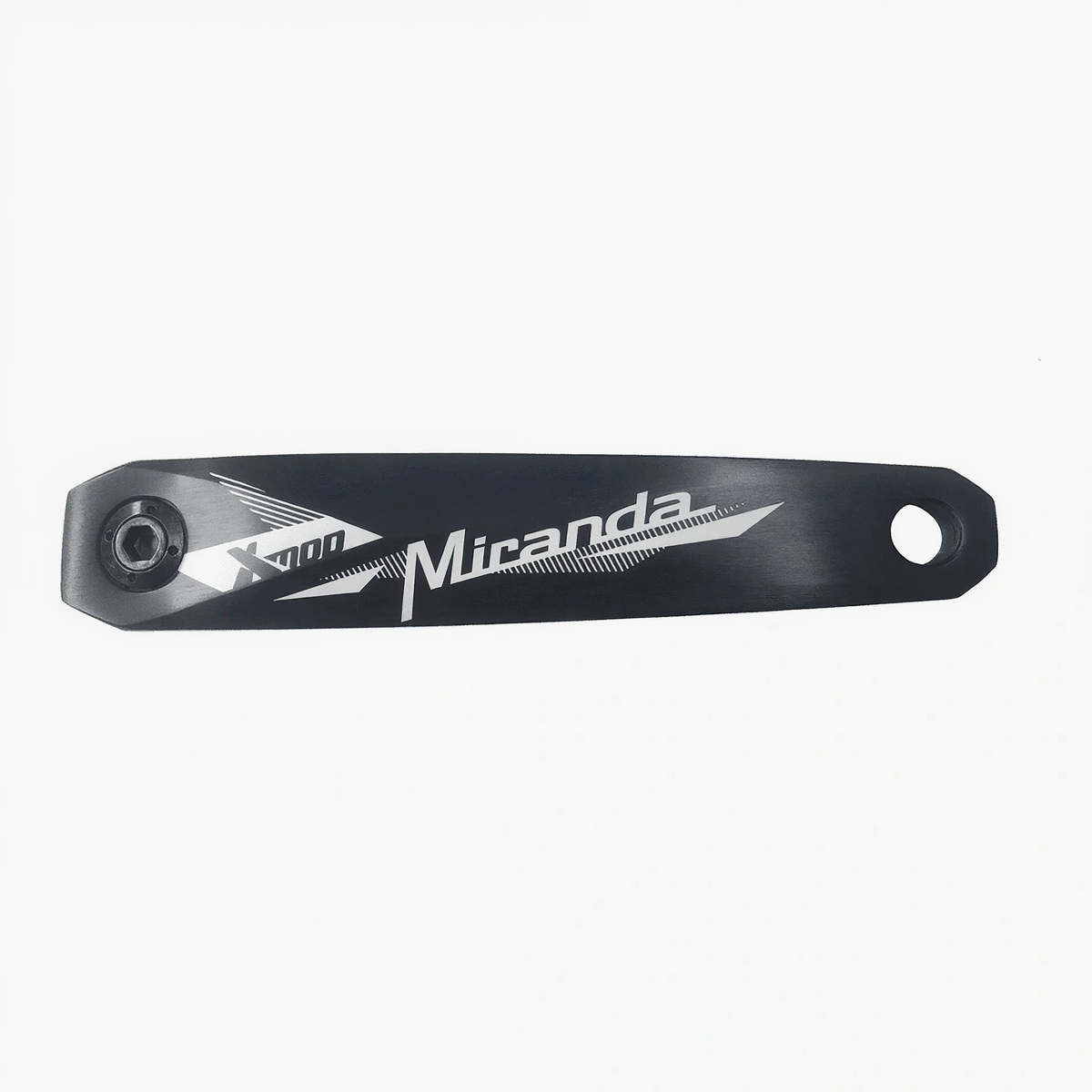

The Kappa combines Miranda cold-forged aluminium construction with a broad choice of crank geometries. It is a practical platform for a carefully matched replacement or custom drivetrain assembly, made in Portugal.
At a glance
- Cold-forged aluminium crank construction
- Match length and geometry to your existing assembly
- Part of the Miranda XMOD modular crank system
Technical details
| Material | Cold-forged aluminium |
|---|---|
| Interface / application | XMOD |
| Crank lengths (mm) | 165, 170, 172.5 |
| Crank geometry options | Q:8, Q:0 |
| Supplied as | Left and right crank arms, with installation screws |
The XMOD assembly
Crank arms, spindle and spider or direct-mount chainring are separate elements of the XMOD system. Choose the combination that matches your bottom bracket and chainline; the same arm length does not make every spindle configuration interchangeable.
Choose the right setup
Choose the arm length and geometry together with the correct XMOD spindle, bottom bracket and spider or chainring. Q:8 and other Miranda Q codes describe arm geometry, not the total Q-factor of the completed assembly.
Compare configurations and product codes
| Configuration | Product code |
|---|---|
| 165 / Q:8 | PK11IBS22L38000013XM |
| 170 / Q:0 | PK06IBS22L38000013XM |
| 170 / Q:8 | PK02IBS22L38000013XM |
| 172.5 / Q:0 | PK07IBS22L38000013XM |
Specifications
EAN
5603895338422
Crank length (mm)
165
Crank geometry
Q:8
finish
Scotch Brite Black
interface
XMod
